NG # 00448-HW-Fluke-009
The first tester to automate MPO fiber testing, automatic testing of all fibers in MPO connectors, ensures correct end-to-end connectivity of MPO fiber trunks, on-board MPO connector, simple user interface, and more.
Stock
Limited
Custom Pricing
Get A Quote
Stock
Limited
Custom Pricing

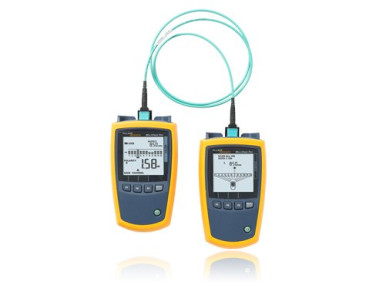

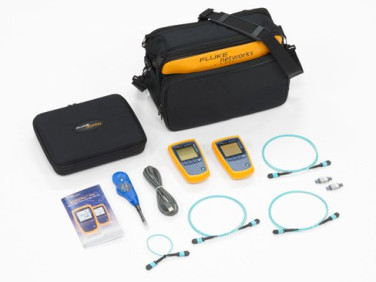

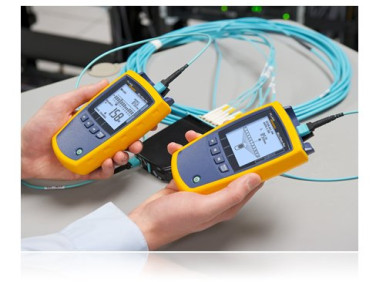

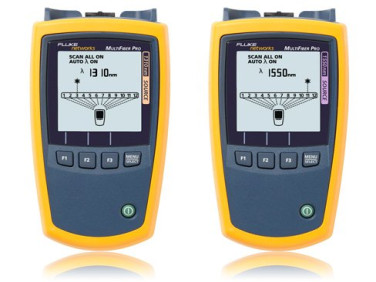

Get A QuoteMultiFiber Pro takes the complexity out of testing MPO trunks for loss and polarity. With an on-board MPO connector, it is the first tester to automate the MPO fiber-trunk testing process without using a fan-out cord. The power meter/light source boasts industry-first functions such as automatic scanning of all twelve fibers and display of test results in an easy-to-read bar graph. These innovative features allow MultiFiber Pro kits to eliminate the complexity of testing MPO trunks, making it 90 percent faster than the traditional simplex test methods.
Specification
Operating temperature | -10ºC to +50ºC |
Storage temperature | -20ºC to +50ºC |
Operating humidity | 95% (10ºC to +35ºC) non-condensing 75% (35ºC to +45ºC) non-condensing Uncontrolled <10ºC |
Operating altitude | 4,000 m |
Storage altitude | 12,000 m |
Vibration Random | 2 G, 5 Hz to 500 Hz |
Optical Power Meter (Specifications apply at 23ºC (73ºF), unless otherwise noted.) | |
Detector type | InGaAs |
Calibrated wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
Measurement range | 0 dBm to -50 dBm |
Power measurement linearity | ±0.1 dB1 |
Power measurement uncertainty | ±0.35 dB |
Power measurement repeatability | < 0.10 dB |
Display resolution, dB or dBm | 0.01 |
Power display units | dBm, mW, μW |
User-selectable limit for loss | 0.05 dB to 50.0 dB, in increments of 0.05 dB up to 10.0 dB and 0.1 dB up to 50.0 dB |
Auto wavelength detection | Yes |
Polarity detection | Detects A, B, C, and Corning Plug & Play™ Universal Systems polarities |
2 kHz detection | Yes |
Record storage | 3000 records, one fiber per record (250 12-fiber cables) |
External interface | USB 2.0, full speed |

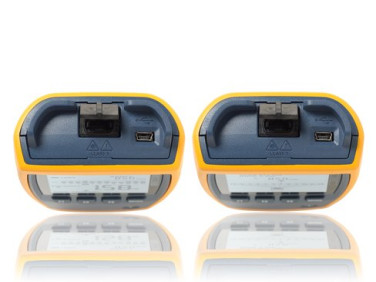

Optical connector | MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 ?m, 50 ?m, and singlemode fibers. Connector has a self-closing, protective cover. |
Power requirement | 2 AA alkaline batteries |
Battery life2 | >30 hours (typical) |
Automatic power-off | 10, 20, 30, or 60 minutes (can be disabled by the user) |
Low battery warning | Low battery icon blinks |
Size | 5.7 in x 3.2 in x 1.5 in (14.5 cm x 8.0 cm x 3.9 cm) |
Weight | 10.9 oz (309 g) |
850nm Source (Specifications apply at 23ºC (73ºF), unless otherwise noted) | |
Emitter type | LED: 850 nm |
Wavelength | 850nm Source (Specifications apply at 23ºC (73ºF), unless otherwise noted) |
Spectral width (FWHM) | 850 nm: +/- 50 nm (typical) |
Output power | 850 nm: =24 dBm. Max difference between channels +/-1dB |
Power output stability3 | ≤ ±0.1 dB over 8 hours |
Encircled flux | Meets ANSI/TIA-526-14-B, ISO/IEC 14763-3, and IEC 61280-4-1 for 50/125 μm at the source’s optical connector. |
Optical connector | MPO interface for 12-fiber, unpinned plugs. Compatible with 62.5 μm and 50 μm. |
Modes | 2 kHz modulated, auto wavelength |
Power requirement | 2 AA alkaline batteries |
Battery life | >30 hours (typical) |
Automatic power-off | 10, 20, 30, or 60 minutes (can be disabled by the user) |
Low battery warning | Low battery icon blinks |
Size | 5.6 in x 3.2 in x 1.6 in (14.2 cm x 8.1 cm x 4.1 cm) |
Weight | 10.9 oz (309 g) |
