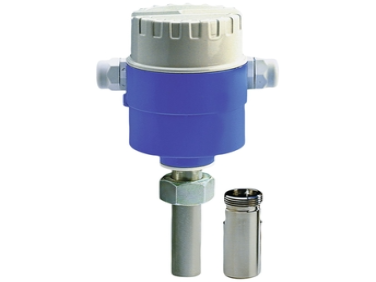

Endress+Hauser Magphant electromagnetic flowmeter

  • NG # 006218-HW-ENDRESS-018

The Magphant is a compact and cost-effective magnetic limit switch designed specifically for reliable flow monitoring in water and utility applications. With high repeatability and stable performance, it ensures dependable flow information that supports safe and efficient plant operations. Built without moving parts and requiring no maintenance, it provides long-lasting functionality while eliminating pressure loss thanks to its unobstructed measuring section. Simple full-scale adjustment via potentiometer and integrated electronic self-testing make the device easy to operate and highly trustworthy in daily use.

Manufactured By :
Endress+Hauser
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Engineered for utilities and general water processes, the Magphant delivers accurate and energy-efficient flow measurement suitable for a wide range of installations. Its robust self-monitoring concept ensures process safety, including secure operation even when piping runs empty. The device enhances plant availability through reliable flow detection while minimizing operational expenses due to its maintenance-free design. With straightforward configuration and proven magnetic-inductive measurement, the Magphant provides a universal, user-friendly, and dependable flow monitoring solution for essential water applications.

Specification

Measuring principle

Electromagnetic

Product headline

.

Sensor features

High plant availability – reliable flow information. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts. Compact, space-saving design. Nominal diameter: DN 15 to 2000 (½ to 80").

Transmitter features

Process safety – device self-monitoring and reliable monitoring even with empty piping. Product safety – integrated testing to check correct functioning of the electronics. Easy operation – potentiometer setting of full-scale value. Switch point setting via rotary switch. Current output and relay output.

Nominal diameter range

DN15 to DN2000
1/2" to 80"

Wetted materials

1.4435/316L

Measured variables

Volume flow

Max. measurement error

2%

Measuring range

0 to 56'550 m3/h

Max. process pressure

0 to 16 bar abs

Medium temperature range

-20 to +120°C
(-4 to +248°F)

Ambient temperature range

-20...60 °C (-4 to 140°F)

Sensor housing material

Die-cast aluminium, epoxy powder coated

Degree of protection

IP 66 / NEMA 4X / Type 4X

Display/Operation

Test function

Outputs

4 to 20 mA
Relay

Inputs

None

Power supply

24 V DC (20...30 V DC)

Hazardous area approvals

FM
CSA

Product safety

CE, EAC

CATALOGS

Magphant electromagnetic flowmeter

Other Endress+Hauser Products

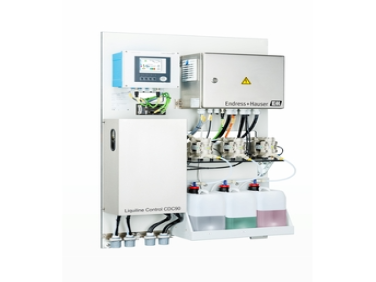

Endress+Hauser Cleaning and calibration system Liquiline Control CDC90
Endress+Hauser IOT, Robotics & Drones 006212-HW-ENDRESS-012

Endress+Hauser Differential pressure Deltabar PMD55
Endress+Hauser Business & Industrial Automation 006221-HW-ENDRESS-021

Endress+Hauser Differential pressure Deltabar PMD75
Endress+Hauser Business & Industrial Automation 006222-HW-ENDRESS-022

Endress+Hauser Compact conductivity device Smartec CLD18
Endress+Hauser Industrial Tools & Accessories 006213-HW-ENDRESS-013

Endress+Hauser Deltabar PMD75B - differential pressure transmitter
Endress+Hauser Business & Industrial Automation 006223-HW-ENDRESS-023

Endress+Hauser FLOWSIC200 ultrasonic flow measurement instrument
Endress+Hauser Business & Industrial Automation 006228-HW-ENDRESS-028

Endress+Hauser iTHERM FlameLine TAF11 High-Temperature Thermometer
Endress+Hauser Industrial Tools & Accessories 006216-HW-ENDRESS-016

Endress+Hauser Vibronic Point level detection Liquiphant FTL31
Endress+Hauser Industrial Tools & Accessories 006217-HW-ENDRESS-017

Endress+Hauser Ultrasonic measurement Time-of-Flight Prosonic FDU90
Endress+Hauser Industrial Tools & Accessories 006208-HW-ENDRESS-008

Endress+Hauer Micropilot FMR30B - radar sensor for basic applications
Endress+Hauser Safety & Security 006207-HW-ENDRESS-007

Endress+Hauser Ultrasonic measurement Time-of-Flight Prosonic FDU95
Endress+Hauser Industrial Tools & Accessories 006210-HW-ENDRESS-010

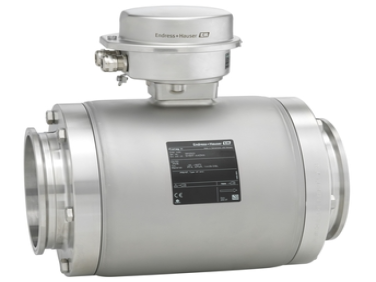

Endress+Hauser Proline Promag H 100 electromagnetic flowmeter
