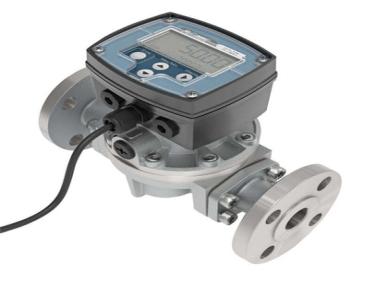

Flomec OM Series Flow Meter with Display | 1/2" - 2" (1 L/min - 450 L/min)

  • NG # 04118-HW-FLO-019

Introducing the Medium Capacity OM Series Flow Meter  with Display, a versatile solution for liquid transfer and dispensing applications. With a flow range from 1 L/min to 450 L/min, these precision-engineered meters offer accurate measurements across a spectrum of flow rates. Exceptional accuracy at ± 0.5% of reading ensures confidence in critical applications, preventing financial loss and maintaining product quality.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Engineered for adaptability, the OM Series handles high-viscosity fluids with ease, making it ideal for substances like lubricating oils and grease. Its low-pressure drop design ensures efficient liquid transfer without compromising overall system performance. The meter's robust construction ensures durability in demanding environments, providing a reliable, long-term solution for various industries.

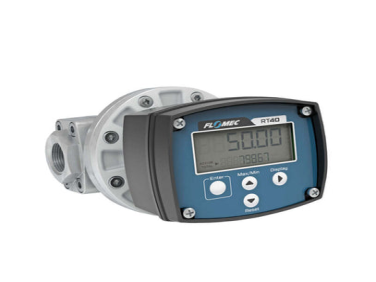

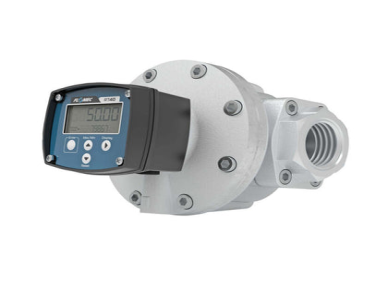

This high level of precision ensures that every measurement is reliable, contributing to the efficiency and success of your processes. The OM comes with a backlit RT40 display in either a low-cost glass-reinforced nylon housing or a rugged aluminium housing for at-a-glance flow measurement monitoring.

Specification

  • Accuracy of ± 0.5% of reading (±1% with M3 mechanical totaliser | ± 0.2% of reading with RT14 with non-linearity correction)
  • Repeatability typically ± 0.03% of reading
  • Flows from 1 L/min. – 450L/min. with Pulse-Out or LCD Display
  • Sizes 1/8” – 3/8” (4mm-10mm) Pipe Sizes
  • High accuracy and repeatability, direct volumetric reading
  • No requirement for flow conditioning (straight pipe runs)
  • Only two moving parts means less maintenance and better reliability
  • Factory calibrated
  • Technology: Oval Gear
  • Flow Range: 1 - 450 L/min (Size Dependant)
  • Accuracy: ± 0.5%
  • Repeatability: ± 0.03%
  • Pressure Rating: 20 - 68 bar (285 - 990 psi) Size Depedant
  • Operating Temperature Range: -40° C - 80° C
