Flomec TM Series Water Flow Meter

  • NG # 04107-HW-FLO-008

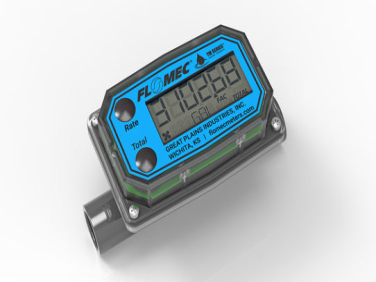

FLOMEC® (GPI) TM Series Water Meters are durable, lightweight, and economical turbine-style meters designed for water processing, irrigation, and sub-metering, featuring Sch 80 PVC construction. Available in 1/2 to 4-inch sizes, they offer ±3% accuracy, low-profile digital displays for rate/total, and various fittings (NPT, BSP, Spigot, Flange).

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

TM Series Water Meters indicate batch, cumulative totals, and rate of flow measured in gallons, litres or cubic feet. They are easy to install with Spigot, NPT, BSP, 150# ANSI flange, or DIN flange fittings. The alkaline battery lasts for two years, and the non-volatile totals mean amounts are retained when batteries are replaced or power is lost. TM Series meters are available with either a computer for local electronic display, or one of three versions of output modules to provide a digital signal to customer interfacing equipment.

Specification

  • Features highly visible Q9, battery-powered, LCD display; 2-year battery life
  • 11 pre-programmed engineering units plus 1 custom option: gallon, litre, imperial gallon, quart, ounce, acre-foot, millilitre, cubic foot, cubic centimetre, cubic metre, barrel
  • Easy to install
  • Modular design allows for use with output modules, sensors, and remote display kits; plug and play
  • Displays in gallons, litres and cubic feet
  • Indicates Batch, Cumulative Totals and Rate of Flow
  • Available in NPT, BSPP, Spigot
  • Non-volatile totals means amounts are retained when batteries are replaced or power is lost
  • Technology: Turbine
  • Flow Range: 3.8 - 760 L/min (Size Dependant)
  • Accuracy: ± 3%
  • Pressure Rating: 10.3 bar (150 psi)
  • Operating Temperature Range: 0° C - 60° C
