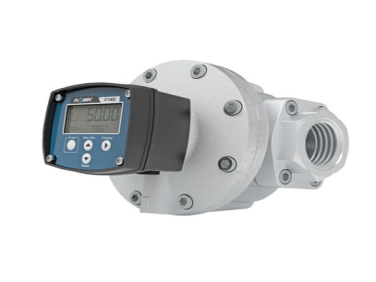

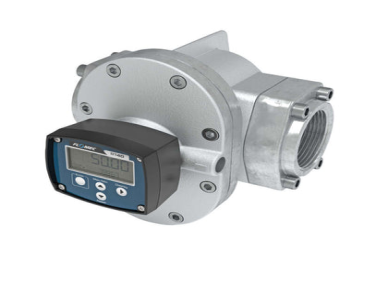

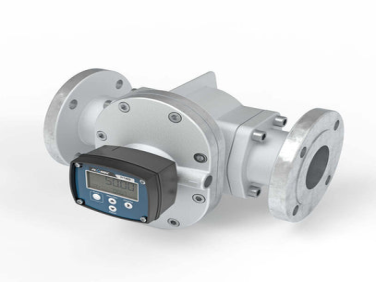

Flomec OM Series Flow Meter with Display | 3" - 4" (35 L/min - 2500 L/min)

  • NG # 04123-HW-FLO-024

Introducing the Large Capacity OM Series Flow Meter with Display—a rugged and reliable solution designed for precision liquid measurement in diverse applications. This robust meter excels in scenarios requiring exceptional accuracy, boasting a flow range from 35 L/min to 2500 L/min with an impressive ± 0.5% reading precision. Whether you're handling bulk diesel fuel transfers or lubricating oils and greases, the OM Series ensures consistent and reliable measurements, providing a solid foundation for decision-making.

Manufactured By :
Flomec GPI
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Designed to withstand challenging environments, the Large OM Series Flow Meter with Display excels in durability and versatility. Its robust construction thrives in harsh conditions, making it perfect for handling high-viscosity fluids while sustaining optimal performance with minimal pressure loss. Equipped with an RT40 display, this OM comes pre-installed in either an economic glass-reinforced nylon casing or a rugged aluminum housing, facilitating effortless monitoring of flow measurements even in demanding situations.

Our OM Series flow meters for fuels and oils are constructed with aluminium body material, PPS rotors, and Viton O-rings and are engineered to endure the rigors of industrial use, ensuring consistent and accurate measurements over time. This robust construction minimises downtime, instilling confidence in operations that demand precision and dependability.

Specification

  • Accuracy of ± 0.5% of reading
  • Repeatability typically ± 0.03% of reading
  • Flows from 35 L/min. – 2500L/min
  • Sizes 3” – 4” (80mm-100mm) Pipe Sizes
  • High accuracy and repeatability, direct volumetric reading
  • No requirement for flow conditioning (straight pipe runs)
  • Only two moving parts means less maintenance and better reliability
  • Factory calibrated
  • Technology: Oval Gear
  • Flow Range: 35 - 2500 L/min (Size Dependant)
  • Accuracy: ± 0.5%
  • Repeatability: ± 0.03%
  • Pressure Rating: 10 - 12 bar (145 - 175 psi) Size Depedant
  • Operating Temperature Range: -40° C - 80° C
