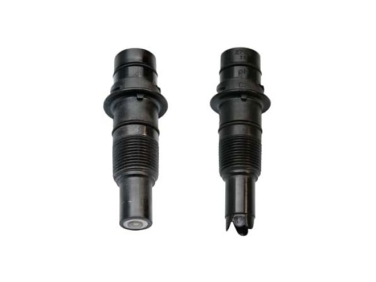

GF Signet 2734-2736 pH/ORP Electrodes

  • NG # 04204-HW-GF-048

The GF Signet 2734-2736 pH / ORP electrodes have a large area PTFE reference junction, salt bridge and reference electrode that are constructed to increase the total reference effectiveness, resist chemical attack, and ensure long service life.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2750 sensor electronics. The robust Ryton threaded sensor body and choice of flat, bulb pH, or flat ORP sensing elements provide a broad range of chemical compatibility for a wide variety of applications. There is an optional pH sensing version available for applications with HF. The HF version is for applications where traces of hydrofluoric acid (2% or less) will attack standard pH glass in levels of pH 6 and below.

The PT1000 temperature sensor offers quick temperature response and allows compatibility with the Signet 8900 and 9900 instruments.

Specification

  • Allows for installation at any angle, even inverted or horizontal
  • 50 to 212°F (10 to 100°C) operating temp
  • 95% efficiency at 77°F (25°C)
  • 0 to 14 pH
  • ±2000 mV ORP
  • Broad range of chemical compatibility
    • Ryton (PPS) body & PTFE junction
    • DryLoc connector with gold plated contacts
  • Quick temperature response
  • Mounts in Signet standard fittings DN15 to DN100 (1/2 to 4in)
  • RoHS compliant
