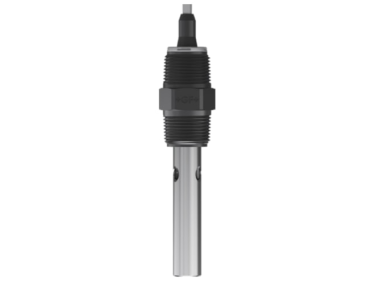

GF Signet 2881-2884 Conductivity / Resistivity Electrode

  • NG # 04202-HW-GF-046

The GF Signet 2881-2884 conductivity/resistivity electrode is available in four cell constants from 0.01 to 10 µS/cm and is suited for a wide range of applications, from high purity water quality monitoring to chemical process solutions.

Manufactured By :
GF Signet
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The electrodes are made of 316L stainless steel with a ±2% percent standard accuracy or ±1% accuracy with certification. It has an integral platinum resistance thermometer (Pt1000) in the electrode, which provides optimum temperature sensing. Dual threaded process connections in 3/4 NPT or ISO 7/1-R 3/4 allow for installation in immersion or inline configurations as well as integrated mounting options for integration into sensor electronics or transmitters.

Specification

  • 3/4in ISO or NPT connection
  • CPVC process connection material for all types
  • PP, PVDF, or PEEK process connection material for 2881, 2882, 2883
  • 316 SS electrodes
  • Triple flow through vent hole
  • In-line or submersible mounting
  • ±2% standard accuracy
  • ±1% optional NIST certification
  • Triple flow-through design
  • Includes 25' of cable
