ISOMAG CS8100 Compact Electromagnetic Flow meter

  • NG # 08611-HW-FMS-0611

ISOMAG CS8100   Compact Electromagnetic Flow Meter features a built-in converter and integrated display in a compact, space-saving design. Engineered for reliable flow measurement in liquids with a minimum conductivity of 20 µS/cm, it delivers ±1% accuracy of reading for dependable performance across a wide range of industrial applications.



Manufactured By :
FLOMOTION SYSTEMS
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

CS8100 Constructed with a Noryl housing reinforced with 30% fiberglass, the CS8100 offers NEMA 6 (IP67) protection for demanding environments. It operates on 18–30 VDC power, supports liquids up to 185°F, and provides configurable digital and analog outputs via PC using dedicated MCP software for flexible system integration.

Specification

SPECIFICATIONS

• Flow Range: 0.2 to 10.6 GPM

• Minimum conductivity: 20 mS / cm

• Accuracy + / - 0.5% of range

• Electrodes: Hastelloy® C276

• Process Connection 1/2″ or 3/4” NPT

 • Pressure: 145 PSI max

• Ambient Temperature: +14 to +122F

 • Liquid Temperature: –4 to +185F

 • Sensor Material: NORYL™ + 30% Fiber Glass

• FKM O-rings (EPDM Optional) NPT.

 • Housing: NORYLTM + 30% of Fiber Glass

 • Protection NEMA 6 (IP 67)

• Power supply: 18-30 VDC, 1W,

 • Electrical connections: 5-pin connector or attached cable

• Data Storage EEprom, Battery Backup RAM

• Diagnostic Functions

Other FLOMOTION SYSTEMS Products

ISOMAG MS3795 Insertion Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08607-HW-FMS-0607

ISOMAG MS501 Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08601-HW-FMS-0601

FMS Series Ultra-Small Electromagnetic Flowmeters
FLOMOTION SYSTEMS Industrial Tools & Accessories 08612-HW-FMS-0612

MV255 Battery Powered Converter
FLOMOTION SYSTEMS Industrial Tools & Accessories 08617-HW-FMS-0617

MV210 Full-Featured High-Power Converter with Graphics Display
FLOMOTION SYSTEMS Industrial Tools & Accessories 08615-HW-FMS-0615

ISOMAG MS1000 Wafer Style Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08603-HW-FMS-0603

ISOMAG CS3820 Compact Battery Powered Insertion Electromagnetic Flowmeter
FLOMOTION SYSTEMS Industrial Tools & Accessories 08609-HW-FMS-0609

MV145 Battery Powered Converter
FLOMOTION SYSTEMS Industrial Tools & Accessories 08616-HW-FMS-0616

ISOMAG MS3810 Hot-Tap Insertion Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08608-HW-FMS-0608

ISOMAG MS3780 Insertion Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08606-HW-FMS-0606

ISOMAG MS2500 Flanged Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08605-HW-FMS-0605

ISOMAG CS3900 Small Diameter Insertion Electromagnetic Flow meter
FLOMOTION SYSTEMS Industrial Tools & Accessories 08610-HW-FMS-0610

ISOMAG MS2420 High Accuracy Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08604-HW-FMS-0604

MV110 Converter Transmitter
FLOMOTION SYSTEMS Industrial Tools & Accessories 08614-HW-FMS-0614

ISOMAG MS600 Electromagnetic Flow Sensor
FLOMOTION SYSTEMS Industrial Tools & Accessories 08602-HW-FMS-0602

MV800 Compact Converter Transmitter
FLOMOTION SYSTEMS Industrial Tools & Accessories 08613-HW-FMS-0613

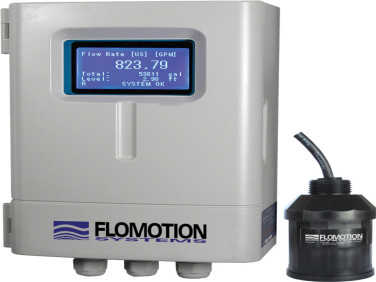

FM8000 OPEN CHANNEL FLOW METER
