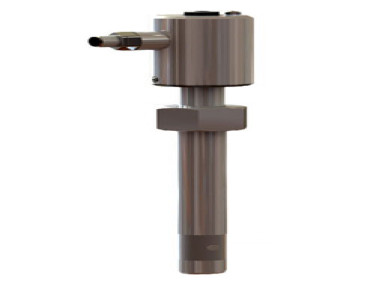

ISOMAG MS3795 Insertion Electromagnetic Flow Sensor

  • NG # 08607-HW-FMS-0607

ISOMAG MS3795 Insertion Electromagnetic Flow Sensor delivers reliable full-pipe flow measurement with high accuracy, cost-effectiveness, and straightforward installation. Designed for large industrial pipes, it provides volumetric flow measurement independent of fluid viscosity, density, or temperature, with bi-directional capability and no moving parts, ensuring minimal maintenance and long-term reliability.





Manufactured By :
FLOMOTION SYSTEMS
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

MS3795 Features include an integral converter, 18–30 VDC power supply, pulse or 4–20 mA output, ±2% accuracy, three sizes for pipes up to 80″, pressure rating up to 230 PSI, removable installation in non-pressurized lines, and factory wet calibration for immediate deployment.



Specification

SPECIFICATIONS

• Accuracy: 2.0%

• Repeatability: ±0.5%

• Temperature (Process): 14 to 212ºF

• Pressure: 232 PSI AVAILABLE SIZES AND DIMENSIONS

• Environmental Rating: NEMA 6 (IP67)

• Fluid Conductivity: 20 μS/cm (min)

• Sensor material: PEEK / FPM Electrodes in SS.

• Process Connection: 1” threaded end
