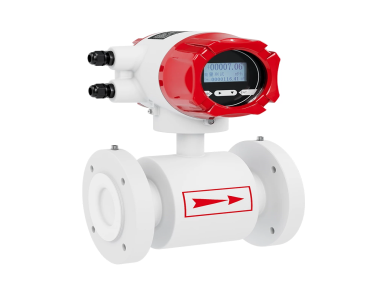

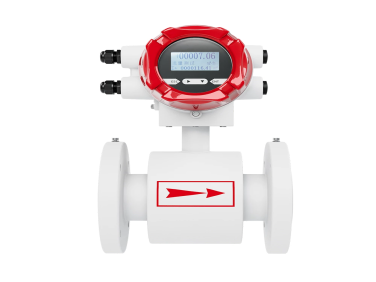

Supmea SUP-FMC400 Low Conductivity Electromagnetic flow meter

  • NG # 03790-HW-SUPMEA-005

The electromagnetic flowmeter is designed based on the Faraday electromagnetic induction principle and used to measure the instantaneous flow rate of conductive liquids in enclosed pipelines in flammable and explosive environments.

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

During on-site monitoring and display, standard current signals, pulse signals, and RS485 digital signals can be output for recording, adjustment, and control, achieving automatic detection and control. It can be widely used in industries such as tap water, chemical industry, coal, environmental protection, light textile, metallurgy, papermaking, etc.

Specification

 Product Electromagnetic flowmeter
 Model SUP-FMC400
 Diameter nominal DN10~DN1000
 Nominal pressureDN15 - DN250, PN ≤1.6MPa
DN300 - DN1000, PN ≤1.0MPa
 AccuracyMeasurement value ±0.5%(Flow velocity 0.5m/s~5m/s)
 Repetitiveness0.16%
 Liner materialCR,UR,PTFE(F4),FEP(F46),and PTFE(PTA)
 Electrode material316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
 Medium temperaturePolyurethane: -10…+60℃ ;PTFE/FEP: -10…+120℃;Chloroprene: -10…+70℃；PFA: -10…+120℃
 Power supplyAC：85V~264V，50Hz~60Hz; DC：18V~28V
 Communications RS485,MODBUS-RTU
 Ingress protection IP65
