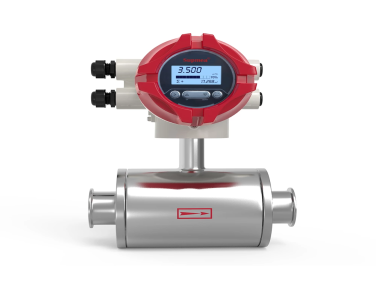

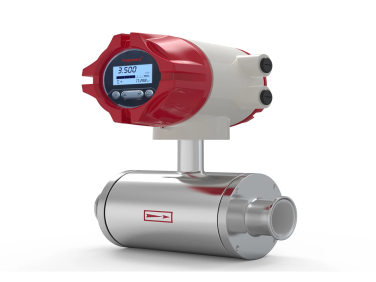

Supmea SUP-LDG Sanitary electromagnetic flowmeter for food processing

  • NG # 03791-HW-SUPMEA-006

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

Specification

 Product Sanitary type electromagnetic flowmeter (magnetic flow meter)
 Model SUP-LDGS
 Diameter nominal DN15~DN100
 Nominal pressure 0.6~4.0MPa
 Accuracy ±0.5%，±2mm/s(flowrate<1m/s)
 Repetitiveness 0.2%
 Liner material PFA, F46, Neoprene, PTFE, FEP
 Electrode material Stainless steel SUS316L, Hastelloy C, Titanium,
  Tantalum, Platinum-iridium
 Medium temperature Integral type: -10℃~80℃
  Split type: -25℃~180℃
 Ambient temperature -10℃~55℃
 Power supply 100-240VAC，50/60Hz / 22VDC—26VDC
 Electrical conductivity Water 20μS/cm other medium 5μS/cm
 Ingress protection IP65, IP68(optional)
 Product standard JB/T 9248-2015
