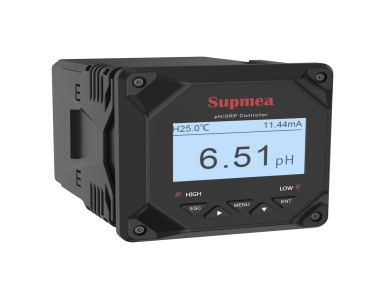

SUP-PH6.5 pH ORP meter

  • NG # 03816-HW-SUPMEA-031

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-PH6.5 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Specification

ParametersDetails
Screen size2.8 inch monochrome LCD with a resolution of 128*64
Overall dimensionPH6.5: 100mm×100mm×150mm PH6.8: 100mm×100mm×150.5mm
Cutout dimension92.5mm×92.5mm
Weight0.58kg
Ingress protectionIP5X
Measure variablespH/ORP
Measure rangepH: (0.00 ~ 14.00) pH
ORP:(-2000 ~ 2000) mV
AccuracypH: ±0.02pH
ORP: (-2000 ~ -1000) mV，±2mV (-1000 ~ 1000) mV，±1mV (1000 ~ 2000) mV，±2mV
Input resistance≥1012Ω
Temperature compensationNTC10K: (-10~60) ℃  Accuracy  ±0.3℃ (60~130) ℃  Accuracy  ±2℃
Pt1000 , Pt100(Customized):  Accuracy ±0.3℃
Range: (-10 ~130)℃  manual/automatic
Output(4~20) mA output, maximum loop is 750Ω, ±0.2%FS
RS485 outputIsolated, Modbus-RTU RS485
Relay2channels, Pickup/Breakaway   AC250V/3A
Relative humidity10%~85% (No condensation)
Working temperature(0~60) ℃
Power supplyAC: 220V±10%，50Hz/60Hz 110V±10% DC: 24V±10%，input power≤6W
Storage conditionsTemperature: (-15~65) ℃
Relative humidity: 5%~95%(No condensation)
Altitude: <2000m
