Supmea SUP-LWGY Turbine flowmeter thread connection

  • NG # 03797-HW-SUPMEA-012

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

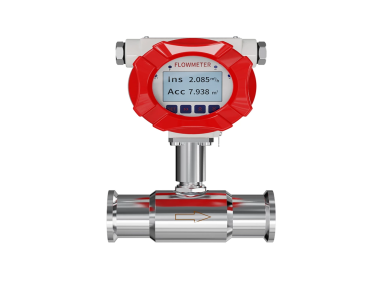

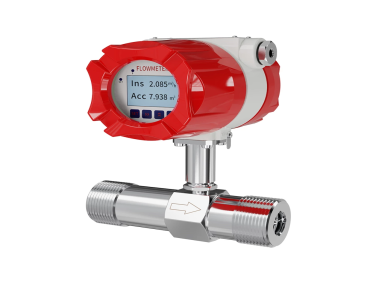

SUP-LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. Threaded type, simple to install and maintain, usually used for small diameter flow measurements: Male:DN4~DN100; female:DN15~DN50

Specification

 Product Turbine flowmeter
 Model SUP-LWGY
 Diameter Nominal DN4~DN100
 Nominal Pressure 86kPa～106kPa
 Accuracy 0.5%R, 1.0%R
 Medium viscosity Less than 5×10-6m2/s
 for the liquid with >5×10-6m2/s,
 the flowermeter needs to be calibrated before using
 Medium Temperature -20℃～＋120℃
 Power Supply 3.6V lithium battery; 220VAC; 24VDC
 Output Signal Pulse, 4-20mA,  Modbus, Hart
 Ingress protection IP65 (IP67, IP68 protocol supply, pulse converter probe IP00)
