NG # 03819-HW-SUPMEA-034

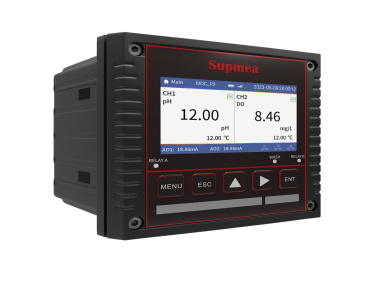

The MDC-P1/P2 is an advanced, intelligent online multi-parameter controllercapable of supporting up to two channels. The first channel's hybrid mode allows for the connection of either analog or digital sensors, while the second channel connects digital sensors.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThis controller can measure a variety of parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, residual chlorine, ammonia nitrogen, nitrate nitrogen, COD, and more. Its continuous monitoring data can be transmitted to a DCS system via output transmission or communicated with a computer using the Modbus-RTU protocol via RS485 interface for remote monitoring and logging. It can also control cleaning systems or pumps.
| Measured variables | pH / ORP / Antimony |
| Measuring ranges | pH/Antimony：(-2.00 ~ 16.00) pH ORP：(-2000 ~ 2000) mV |
| Input impedance | ≥1012Ω |
| Temperature types | NTC10K ，Pt1000 ，Pt100 |
| Temperature range | (-10~130)℃ |
| Accuracy | pH：±0.02pH |
| Antimony：±0.2pH | |
| ORP：±2mV | |
| NTC10K：(-10~60)℃, accuracy: ±0.3℃ (60~130)℃, accuracy: ±2℃ | |
| Pt1000 accuracy: ±0.3℃ | |
| Pt100 accuracy: ±0.3℃ | |
| Resolution | pH/Antimony：0.01pH； ORP：1mV |
| Repeatability | 0.02pH |
| Temperature compensation | Manual compensation; |
| Automatic compensation: Linear, Acid, Base, Pure | |
| Digital sensor input | |
| Measured variables | pH/ORP/Conductivity/Dissolved Oxygen/Turbidity/Sludge Concentration/Inductive Conductivity/Residual |
| Chlorine/Ammonia nitrogen/Nitrate nitrogen/COD, etc. | |
| pH: (0.00 ~ 14.00) pH | |
| Measuring ranges | ORP: (-2000 ~ 2000) mV |
| Dissolved oxygen: (0～40) mg/L | |
| Saturation: (0～200)% | |
| Conductivity: (0～500) mS/cm | |
| Turbidity: (0～4000) NTU | |
| Sludge concentration: (0～120000) mg/L | |
| Inductive conductivity: (0～2000) mS/cm | |
| Residual chlorine: (0~ 100) mg/L | |
| Ammonia nitrogen: (0~ 1000) mg/L | |
| Nitrate nitrogen: (0~ 1000) mg/L | |
| COD: (0~ 1500) mg/L | |
| Note: Actual measurement ranges should refer to the technical data of the connected sensors. | |
| Output | |
| Isolated,2-channel (0/4~20) mA configurable to corresponding measurement ranges, load capacity 750Ω,output accuracy ±0.1%FS,compliant with NAMUR NE 43 | |
| Current output | |
| standards. | |
| Communication output | Isolated, RS485 interface,Modbus-RTU communicationprotocol. |
| Alarm output | 3-channel SPST (2 alarms + 1 cleaning), NO/NC type, capacity 250VAC, 5A. |
| Alarm relay delay | 0~9999 seconds, adjustable. |
| Electrical specifications | |
| Power supply | AC：(85~265)V，50/60Hz |
| DC：(21.6~26.4) V | |
| Power consumption | ≤28W |
| Cable entries | M20*1.5 cable gland |
| Cable specification | Spring terminals: suitable for AWG16~AWG24（0.2mm2~ 1.5mm2 ）cables； |
| Plug-in terminals: suitable for AWG12~AWG28（1mm2~ 2.5mm2 ）cables； | |
| Environment | |
| Operating environment | Temperature：(0 ~ 60)℃ |
| Relative Humidity：10 %~85%（ non-condensing） | |
| Storage environment | Temperature：(-15~65)℃ |
| Relative Humidity：5%~95%（non-condensing） | |
| Altitude ：<2000m | |
| Ingress protection | IP66 |
| Flame Retardancy | UL94V-0 |
