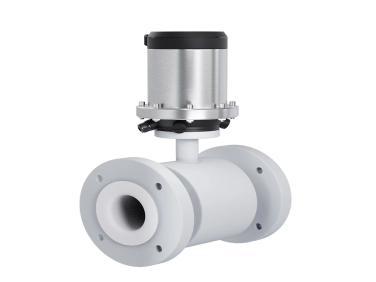

SUP-FMC800 Battery powered electromagnetic flowmeter

  • NG # 03815-HW-SUPMEA-030

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The battery-powered electromagnetic flow meter converter adopts internal battery power supply without  external power supply. It is suitable for working conditions where the field power grid cannot be reached and  the power grid is difficult to lay. It is especially suitable for the monitoring, metering and settlement of the tap  water supply system.

Specification

 Product Electromagnetic flowmeter
 Model SUP-FMC800
 Diameter nominal DN3~DN2100
 Accuracy0.5%
 Environmental temperature -20℃-50℃
 Relative humidity≦95％
 Lining material

PTFE, PFA, F46, neoprene, polyurethane rubber, high temperature

rubber

 Flow range0-15m/s
 ConductivityClean water >20 μs/cm
 CommunicationRS485 (modbus protocol)
 Electrode material

SS316, Hastelloy B/C, titanium, tantalum, platinum-iridium alloy,

tungsten carbide

 Electrode typeStandard , scraper, replaceable
 ConnectionFlange, plug-in, clamp ,clip-on
 Medium temperature-20℃～+60℃
Nominal pressure0.6～4.0Mpa (other can be customized)
Measurement parameterInstantaneous flow, instantaneous flow rate
Record parameterAccumulated total Flow
Detection and alarm parametersFluid empty pipe detection alarm, excitation current detection alarm
Test mode output signalUnit volume flow pulse
