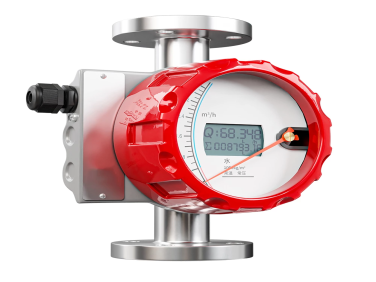

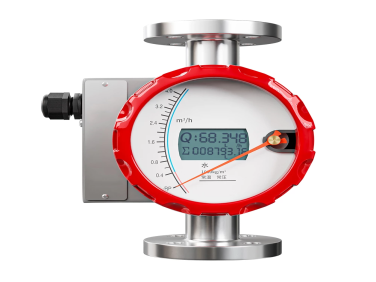

SUP-LZ Metal tube rotameter

  • NG # 03799-HW-SUPMEA-014

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-LZ Metal Tube Rotameter is a device that measures the volumetric flow rate of fluid in a closed tube. It belongs to a class of meters called variable-area flowmeters, which measure flow rate by allowing the cross-sectional area the fluid travels through to vary, causing a measurable effect.

Specification

ProductMetal Tube Rotameter
ModelSUP-LZ
RangeWater (20℃) (01~200000) L/h Air (20,0.1013MPa) (0.05~2000) m³/h
Range ratioStandard 10:1       Optional 20:1
AccuracyStandard type: Liquid: 1.5%       Gas: 2.5%
Customized type: Liquid: 1.0%       Gas: 1.5%
Pressure

standard：DN15~DN50≤4.0MPa DN65~DN200≤1.6MPa

high pressure type: -80 ℃ ~ 200 ℃,DN15~DN100≤10MPa ；200 ℃ ~ 350 ℃,DN80~DN200≤6.3MPa

ConnectionFlange, Clamp, Thread, Sanity thread
Medium temperatureStandard: -20℃~120℃ PTFE -40℃~80℃ High temp: 120℃~450℃ low temp: -80℃~-20℃
Environment temperatureRemote type: -40℃~70℃ Pointer type/local alarm type -40℃~80℃
Power supplyStandard type: 24VDC two-wire system (4-20) mA (12VDC~32VDC) Alarm type: 24VDC multi-wire system (4-20) mA (12VDC~32VDC) AC type: (100~240) VAC 50Hz~60Hz Battery type: 3.6V@9AH lithium battery
Load resistanceRLmax: 600Ω
Alarm OutputInstantaneous flow alarm for upper and lower limits, optocoupler-isolated Darlington output (internal 24VDC supply, max 8mA, external supply up to 250mA@ 36VDC）
Local alarm type: upper limit, lower limit, or both upper and lower limit instantaneous flow alarms, reed switch contact output (contacting rate1A @ 30VDC) Optional normally open/closed contacts.
Alarm holding range: Max 60% range of the full span, Min. Interval between upper and lower limit alarm: 10% of full scale
Pulse outputCumulative pulse output is output of optocoupler signal isolation Darlington tube (internal 24VDC power supply, maximum current
8mA)
Ingress protectionIP65
