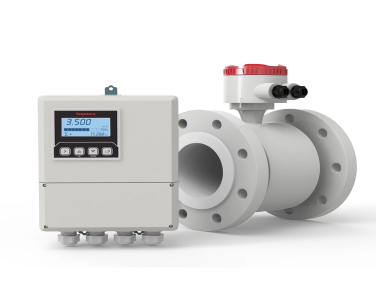

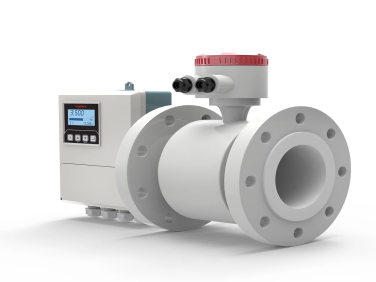

Supmea SUP-LDG Remote type electromagnetic flowmeter

  • NG # 03788-HW-SUPMEA-003

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

Specification

 Product Electromagnetic flowmeter
 Model SUP-LDG
 Diameter nominal DN15~DN1200
 Nominal pressureDN15 - DN250, PN ≤1.6MPa; DN300 - DN1000, PN ≤1.0MPa; DN1200, PN ≤0.6 MPa; Higher pressure can be customized
 Accuracy ±0.5% F.S. (Flow speed > 1m/s);  ±0.5% F. S. ±2mm/s (Flow speed <1m/s)
 Liner material  Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
 Electrode material  316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
 Medium temperatureNeoprene: -10…+60℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+180℃
 Power supply85-245VAC，50/60Hz, 22VDC-26VDC
 Electrical conductivity Water min.20μS/cm;other medium min.5μS/cm
 Structure type Compact type, Remote type
 Ingress protectionIP65 for converter, IP68 for sensor
 Product standard JB/T 9248-1999 Electromagnetic Flow Meter
