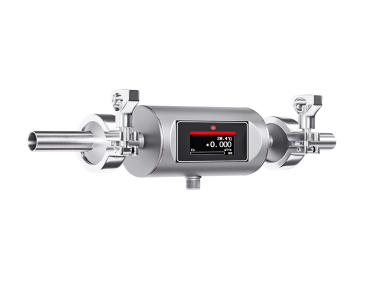

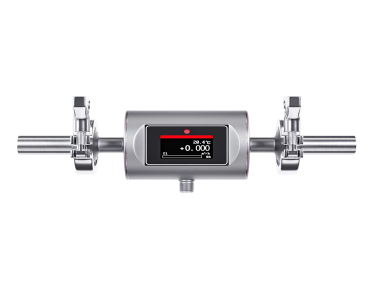

Supmea SUP-FMX240 Compact Electromagnetic Flow Meter

  • NG # 03793-HW-SUPMEA-008

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The compact electromagnetic flowmeter (also magmeter, mentioned as magmeter in the following content) integrates the traditional magmeter’s transmitter and sensor into a single unit. With its compact design and flexible installation, it features an infrared remote control for easy commissioning and mounting. Widely used across various industries, it measures the volumetric flow rate of conductive liquids with a conductivity greater than 2μS/cm. This inductive instrument is specifically designed for measuring the volumetric flow of conductive media.

Specification

 Product Electromagnetic flowmeter
 Model FMX240
 Diameter nominal DN6~DN65
 Accuracy±0.5%
 Repeatability≦0.1%
 Electrial conductivity≧2 μS/cm
 Process pressure-0.1MPa~6.3MPa
 Medium temperature0…+80℃
 Power supply(18~36)VDC
 Communication output RS485,MODBUS-RTU
 Ingress protection IP67
 Electrical interface M12-4 core connector
