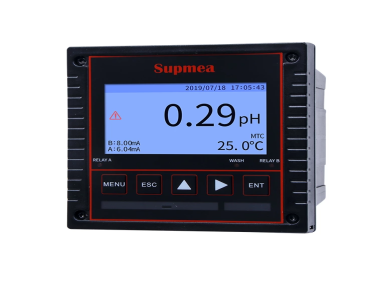

SUP-PH8.0 pH ORP meter

  • NG # 03822-HW-SUPMEA-037

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-PH8.0 industrial pH meter is an online pH analyzer which applied in chemical industry metallurgy, environment protection, food, agriculture and so on. With 4-20mA analog signal, RS-485 digital signal and relay output. Can be used for industrial processes and water treatment processes pH control, and support remote data transmission, etc.

Specification

Screen size4.3 inch
InstallationPanel mounted
DimensionOverall dimension:144mm * 144mm * 115mm Cutout dimension:138mm * 138mm
Panel thickness1.0 ~ 5.0mm
Weight0.68Kg
Ingress protectionIP65
Measured variablespH/ORP/Temp
Measurement rangepH-2.00 ~ 16.00pH
ORP-1999 ~ 1999mV
Temp-10.0 ~ 130.0℃
AccuracypHpH sensor
ORPAntimony pH sensor
TempNTC10K
PT1000/PT100
Temperature compensationNTC10K/PT1000（PT100 optional）
Temperature compensation：manual/automatic
Operating temperature0 ~ 60℃
Storage conditions-20 ~ 70℃
Relative humidity(10 ~ 85)%RH（No condensation）
Input resistance≥ 10^12Ω
LanguageChinese/English
Analog output1 output（2 output optional）4-20 mA, maximum loop is 750Ω,±0.2%FS
Communication protocolMODBUS-RTU RS485
Alarm relay2 channel, Normally open 245VAC 5A Max.
Automatic CleaningManually clean, set cleaning interval
Record100 sets, recording interval can be set through configuration, the recording method is FIFO.
Power supply100 ~ 240VAC，5W Max，50/60Hz
