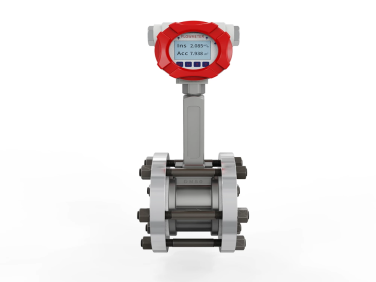

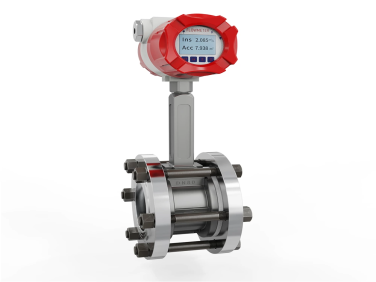

Supmea SUP-LUGB Vortex flowmeter wafer installation

NG # 03795-HW-SUPMEA-010

A fluid flowing with a certain velocity and passing a fixed obstruction generates vortices. The generation of vortices is known as Karman’s Vortices.The frequency of vortex shedding is a direct linear function of fluid velocity and frequency depends upon the shape and face width of bluff body.

Manufactured By :

Supmea

Ask For Price

Stock

Need Help Ordering?

Call +88 01714243446

Custom Pricing

Get A Quote

Ask For Price

Need Help Ordering?

Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.

Specification

Product	Vortex flowmeter wafer installation
Model	SUP-LUGB
Diameter nominal	DN15~DN300
Installation	Wafer connection: DN15-DN300(priority PN2.5MPa)
Accuracy	1.5%, 1.0%
Range Ratio	Gas density:1.2kg/m3, Range ratio: 8:1
Medium Temperature	-20°C ~ +150°C、-20°C ~ +260°C、-20°C ~ +300°C
Output signal	4-20mA
Frequency	RS485 communication (Modbus RTU)
Power supply	24VDC±5% Li battery (3.6 VDC)
Ingress protection	IP65
Body Materials	Stainless shell
Display	128*64 dot matrix LCD
