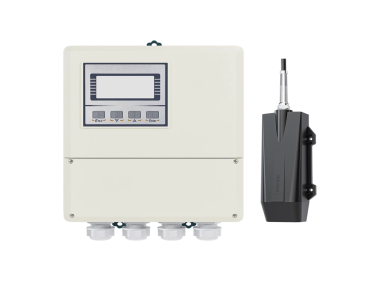

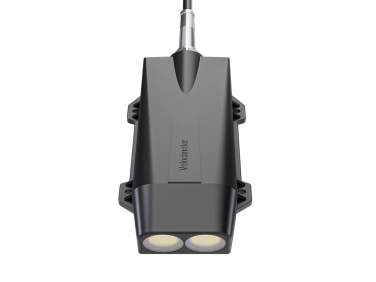

SUP-FSD300 Ultrasonic Doppler Flow Meter

  • NG # 03802-HW-SUPMEA-017

Manufactured By :
Supmea
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

SUP-FSD300 Ultrasonic Doppler flowmeter is an instrument to measure the flow rate and flow of water in natural waters or channels and pipelines.It is easy to operate and with stable performance.

Specification

ProductUltrasonic Doppler Flow Meter
 Model  SUP-FSD300
Parameter
Measured variable      Flow rate,liquid,temperature
Measuring rangeBidirectional flow but no identification of flow direction, absolute value of flow rate flow rate
Bidirectional flow and identification of flow direction, flow rate flow with plus or minus sign
Temperature
AccuracyFlow rate: 1.0%±0.01m/s
Liquid level: 0.2%±0.01m
Temperature: ±1℃
ResolutionFlow rate: 1mm/s
Liquid level: 1mm
Response time10s～60s
Note: Set the smoothing coefficient through the communication protocol, the larger the value the faster the response of smoothing flow rate.
Operating frequency2MHz
Firing power1W
Protection levelIP68
Output
Transformer outputOutput type
Output accuracy
Output load
Communication output Output type
Communication specification
Relay outputRelay type
Power supply
Power supplyAC: 220V
DC: 24V
Power consumption≤4W
Over-voltage protection36V
Electrical interfaceM20*1.5 cable plugs
Process conditions
Type of waterwayPipelines, channels, natural streams, rivers
Measured mediumpH value between 6 and 8, non-corrosive to the sensor
Medium temperature(0～60)°C
Environmental conditions
Ambient temperature (0～60)°C
Storage temperature (-20～60)°C
