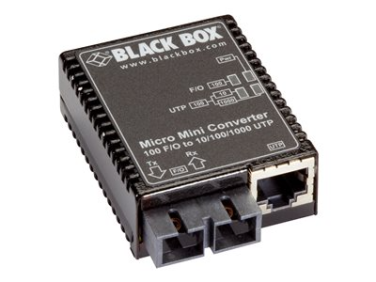

Black Box Micro Mini Media Converter - fiber media converter - 10Mb LAN, 100Mb LAN, GigE - TAA Compliant

  • NG # 03478-HW-BLACK-011

  • MF # LMC402A

Manufactured By :
Black Box

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Bring fiber to the desktop and other tight spaces. The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight compact size and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key this ultra-compact media converter is portable yet powerful. For extra versatility it can be USB-powered making it easy to provide fiber connectivity to locations where AC or DC power is unavailable for instance field-deployed fiber-to-the-laptop. For easy portability this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed duplex mode and crossover functions for PCs with 10BASE-T 100BASE-TX and 1000BASE-T Ethernet. On the fiber side the converter has an SC connector for connection to multimode fiber. Because it can be powered through a computer's USB 1.0 or 2.0 port the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port the media converter shuts down automatically when you turn off the computer which saves energy.

Specification

General
Device Type
Fiber media converter
Form Factor
External
Networking
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-FX, 100Base-TX, 1000Base-T
Data Link Protocol
10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate
100 Mbps
Optical Wave Length
1310 nm
Max Transfer Distance
3.1 miles
Status Indicators
Power, link/activity
Features
Auto-negotiation, USB powered, Jumbo Frames support
Expansion / Connectivity
Interfaces

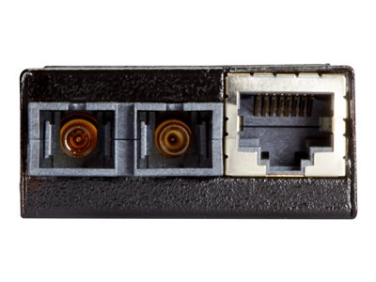

1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC multi-mode female x 2 ¦ 1 x USB - Type B
Miscellaneous
TAA Compliant
Yes
Power
Power Device
External power adapter
Voltage Required
AC 120 V (50 - 60 Hz)
Dimensions & Weight
Width
1.7 in
Depth
2.2 in
Height
0.8 in
Weight
2.5 oz
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
5 - 95% (non-condensing)
