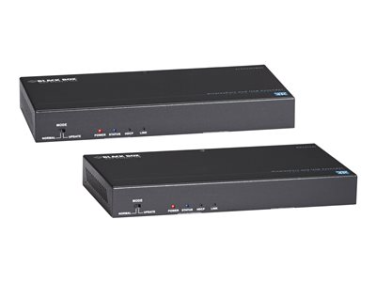

Black Box Receiver + Transmitter - video/audio/USB/serial extender - USB, serial, DisplayPort

  • NG # 03477-HW-BLACK-010

  • MF # UVX-DP-TP-100M

Manufactured By :
Black Box

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Extend 4K DisplayPort audio and video, USB, serial, and power up to 100m over a single CATx cable. This Black Box DisplayPort& USB 2.0 Extender is designed for highly demanding use cases and is capable of supporting DisplayPort resolutions up to Ultra HD 4K at distances of up to 100m. The Transmitter and Receiver units are electronically isolated from one another removing the risk of damage via ground loop with USB 2.0 devices one can extend a keyboard mouse and and other peripheral signals.

Specification

General
Device Type
Video/audio/USB/serial extender
Form Factor
External
Networking
Connectivity Technology
Wired
Data Link Protocol
USB, serial, DisplayPort
Data Transfer Rate
10.2 Gbps
Max Resolution
3840 x 2160 @ 30 Hz
Max Transfer Distance
328 ft
Status Indicators
Power, status, link/activity, HDCP
Expansion / Connectivity
Interfaces

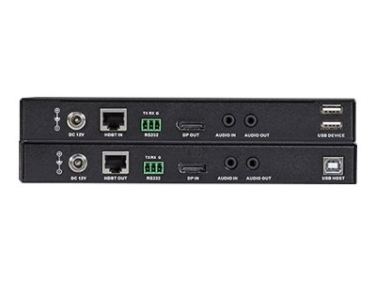

1 x DisplayPort (input) ¦ 1 x HDBaseT (output) ¦ 2 x audio (input) - mini jack female ¦ 2 x audio (output) - mini jack female ¦ 1 x HDBaseT (input) ¦ 1 x DisplayPort (output) ¦ 1 x USB 2.0 - Type B ¦ 2 x USB 2.0 - Type A ¦ 2 x serial
Miscellaneous
Included Accessories
2 mounting brackets
Compliant Standards
EDID compatible
Power
Power Device
External power adapter
Voltage Required
AC 100 - 240 V (50/60 Hz)
Power Consumption Operational
14.2 Watt
Dimensions & Weight
Width
7.9 in
Depth
3.9 in
Height
1 in
Weight
17.64 oz
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
113 °F
Humidity Range Operating
10 - 90% (non-condensing)
