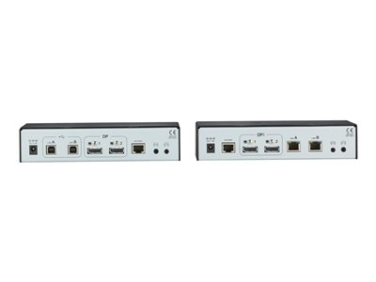

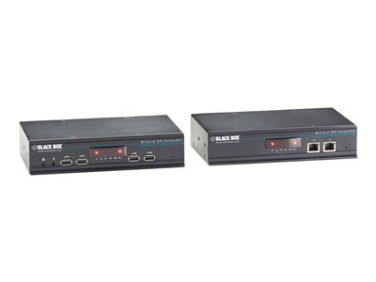

Black Box Wizard DisplayPort KVM Extender - KVM / audio / USB extender

  • NG # 03480-HW-BLACK-013

  • MF # ACU5800A

Manufactured By :
Black Box

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Extend DisplayPort 4K30 and USB 2.0, 100-meters over CATx. The Black Box DisplayPort Extender is a high-performance KVM extender that enables you to locate your critical computing hardware in a secure and temperature-controlled environment away from the user workstation while maintaining the same user desktop experience. It can transmit either two 1920 x 1200 video streams or one higher resolution video stream (2560x1600 WQXGA) digital audio (S/PDIF) analog audio Hi-Speed USB 2.0 and USB 2.0 (full and low speed) over CATx cables. Perfect digital video real-time control The system is uncompressed sending every pixel of every frame without loss. The receiver supports DisplayPort Dual Mode (DP++) meaning monitors that only support HDMI or DVI can be used (with the correct adapter cable). Single CATx cable Video USB and audio all pass along a single cable. A second CATx cable is required for the Hi-Speed USB 2.0 extension and increased video bandwidth. Up to 492 feet (150 m) extension distances Distance is dependent on the monitor resolution the number of monitors cable type and the number of patch panels and couplers. USB 2.0 Enables connection of any USB human interface device from mice and keyboards through to graphics tablets jog wheels joysticks and 3D explorers. Mass storage devices and isochronous devices such as webcams and headsets can be used through the transparent USB 2.0 Hi-Speed port. EDID management The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer. Plug and play This extender solution is plug-and-play. There is no need for drivers or software to be installed. Digital audio Supports the S/PDIF interface via an optical 3.5mm jack socket (dual use with analog audio via mini Toslink). HD-quality analog audio HD-audio quality (stereo channel 24 bit sampled at 96kHz) is available to transfer audio from local to remote for Line In/ Line. Headsets with integrated microphones are also supported.

Specification

General
Device Type
KVM / audio / USB extender
Form Factor
External - 1U
Networking
Connectivity Technology
Wired
Keyboard / Mouse Interface
USB
Max Resolution
2560 x 1600
Max Transfer Distance
492 ft
Status Indicators
Status
Compliant Standards
USB 1.1, USB 2.0
Expansion / Connectivity
Interfaces
2 x DisplayPort ¦ 4 x USB 2.0 - Type A ¦ 2 x microphone - mini jack ¦ 2 x audio - mini jack
Miscellaneous
Cables Included
1 x DisplayPort cable - 6.6 ft ¦ 2 x USB cable - 6 ft ¦ 2 x audio cable - 10 ft ¦ 1 x serial cable
Compliant Standards
UL, TUV, VESA EDID, RoHS, DDC, FCC Part 15 A
Power
Power Device
External power adapter
Voltage Required
AC 120/230 V (50 - 60 Hz)
Power Consumption Operational
20 Watt
Software / System Requirements
OS Required
UNIX, Apple MacOS, SunOS, Linux, Microsoft Windows
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 80% (non-condensing)
