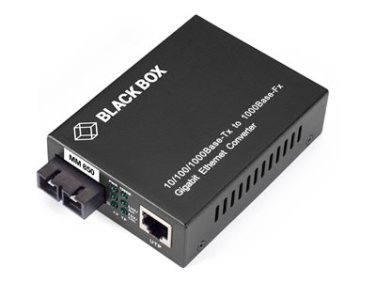

Black Box - fiber media converter - 1GbE

  • NG # 03470-HW-BLACK-003

  • MF # LGC211A-R2

Manufactured By :
Black Box

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Convert 10/100/1000BASE-TX to 1000BASE-SX. 10/100/1000BASE-TX to 1000BASE-SX Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-SX. Includes broadcast storm control flow control and CRC error checking. Auto-negotiation Completely compatible with IEEE802.3/802.3u auto-negotiation function. Complies with Standards The media converter meets EN60950 UL62368 and EN62368 standards.

Specification

General
Device Type
Fiber media converter
Networking
Connectivity Technology
Wired
Cabling Type
10Base-T, 100Base-TX, 1000Base-TX, 1000Base-SX
Data Link Protocol
1GbE
Data Transfer Rate
1 Gbps
Optical Wave Length
850 nm
Max Transfer Distance
1800 ft
Features
Standalone use, 50/125µm core size, 62.5/125µm core size, Jumbo Frames support (up to 9000 bytes)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Expansion / Connectivity
Interfaces

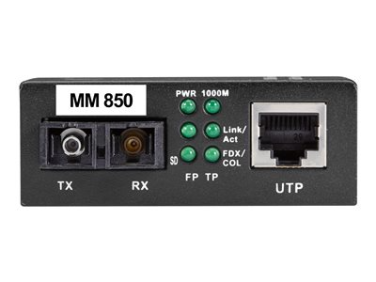

1 x Ethernet 10Base-T/100Base-TX/1000Base-TX - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC multi-mode female x 2
Miscellaneous
Included Accessories
Power adapter
Rack Mounting Kit
Optional
Compliant Standards
FCC Class B certified, RoHS
Power
Power Device
External power adapter
Voltage Required
5 V (50 - 60 Hz)
Dimensions & Weight
Width
2.7 in
Depth
3.7 in
Height
1 in
Weight
10.58 oz
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
