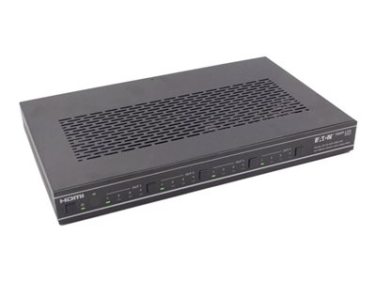

Eaton Tripp Lite series - video switch - 4 x 4 - 2 ports

  • NG # 03452-HW-Eaton-006

  • MF # B119-4X4-4K6-VW

Manufactured By :
Eaton

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Extends 4K Video in 2 Operational Modes: 4x4 Matrix and Video Wall


This Matrix Switch is a multi-purpose high-speed video processing system that you can configure for two different output modes: 4x4 matrix (with seamless switching) and video wall. It features four HDMI inputs with resolution up to 4K at 60 Hz and four HDMI outputs to create 10 video wall modes: 2x2, 1x2-2, 1x2, 2x1-2, 2x1, 1x3, 1x4, 3x1, and 4x1. You can set display modes via front-panel buttons, the included IR remote, RS-232 commands or TCP/IP. Access the web GUI to visualize content shared over multiple displays.


Transmits 4K Video with HDR and 4:4:4 Color


The B119-4X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.


Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions


Say you have a brand new 4K/60 Hz HDTV in the living room, but want to also connect your Blu-ray player or media server to the older 1080p TV in the kitchen and the 4K/30 Hz monitor in your home office. The B119-4X4-4K6-VW is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected television to display video at its maximum resolution without affecting the other outputs.


Plug-and-Play Operation for Quick Setup and Immediate Use


The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect up to four 4K source devices to the HDMI inputs and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.

Specification

General
Device Type
Video switch - 4 x 4 - 2 ports
Enclosure Type
Desktop
Subtype
HDMI
Ports
4 x HDMI
Max Resolution
3840 x 2160 @ 60 Hz
Features
Pushbutton/Hotkey switching, 4:4:4 chroma subsampling support, DTS support, Dolby support, Dolby Digital EX support, Dolby Digital Plus support, Dolby Digital support, 3D support, HDR support, 12-bit Deep Color support, metal housing, YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2, Dolby TrueHD support, DTS 96/24 support, DTS-HD Master Audio support, LPCM support, multi resolution support
Compliant Standards
HDCP 2.2
Status Indicators
Power, standby, signal
Expansion / Connectivity
Interfaces
4 x HDMI input female ¦ 4 x HDMI output female
Expansion Slots
Serial RS-232
Power
Power Device
External power adapter
Power Provided
12 V - 2.5 A
Voltage Required
AC 100-240 V (50/60 Hz)
Electric Current Required
0.8 A
Miscellaneous
Color
Black

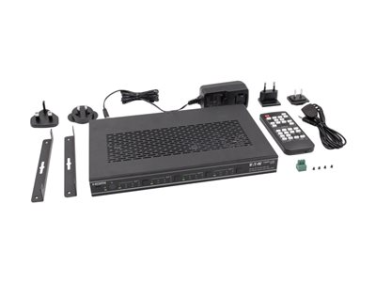

Included Accessories
Mounting brackets, remote control, 4 screws, international power plugs, IR receiver cable, IR remote
Cables Included
1 x IR extension cable - 5 ft ¦ 1 x RS-232 adapter
Compliant Standards
FCC, RoHS, UKCA, UL, WEEE, HDCP 2.2, EDID compatible, CEC
Localization
Australia, Europe, North America, United Kingdom
Dimensions & Weight
Width
10.6 in
Depth
6.5 in
Height
1.2 in
Dimensions & Weight (Shipping)
Shipping Width
13.9 in
Shipping Depth
9.2 in
Shipping Height
3.5 in
Shipping Weight
4.52 lbs
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
20 - 90% RH (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
140 °F
