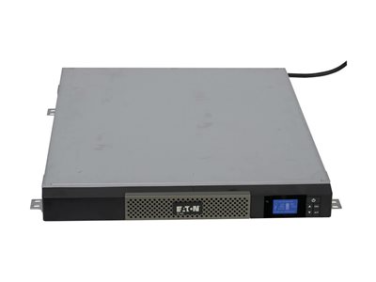

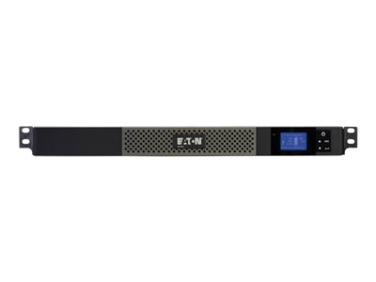

Eaton 5P 550 RACKMOUNT - UPS - 420 Watt - 550 VA

  • NG # 03457-HW-Eaton-011

  • MF # 5P550R

Manufactured By :
Eaton

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

550VA/420W/120V Battery Backup for Network Closets and Small Data Centers


This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P550R protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.


Reliable Battery Backup Keeps You Operational Through Power Outages


valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.


Optional Gigabit Network Interface Offers 24/7 Remote Access


The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.


NEMA 5-15R Outlets Protect Your Connected Components


Five managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

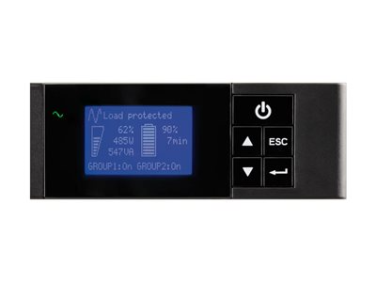

LCD Interface Keeps You Informed at a Glance


The five-button graphical LCD provides useful information about the UPS itself, load status,events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.


Advanced Communications Ports Allow for Automatic Saves and Shutdowns


RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment.


Easy Installation Options

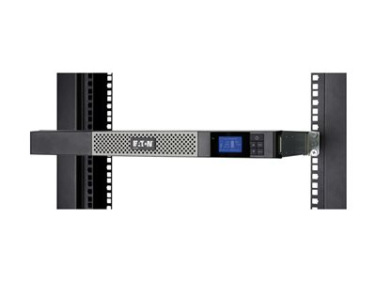

You can mount the compact 5P550R in just 1U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. At just 14.3 inches deep, the UPS mounts in short-depth racks and other compact spaces. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.

Specification

General
Device Type
UPS - rack-mountable
Height (Rack Units)
1U
Power Device
Load Rating
Small workgroup server
UPS Technology
Line interactive
Input Voltage
AC 120 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
Power NEMA 5-15
Power Output Connectors Details
5 x power NEMA 5-15
Output Voltage
AC 120 V 50/60 Hz
Power Capacity
420 Watt / 550 VA
Surge Suppression
Yes
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) ¦ 1 x USB
Expansion Slots
1 (total) / 1 (free) x expansion slot
Miscellaneous
Included Accessories
Rack mounting ears
Cables Included
USB cable - external ¦ Serial cable - external ¦ Power cable - integrated
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, remote ON/OFF function
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Dimensions & Weight
Width
17.2 in
Depth
14.3 in
Height
1.7 in
Weight
17.79 lbs
Compatibility Information
Designed For
P/N: 744-A2217
