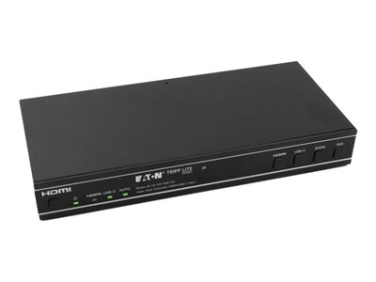

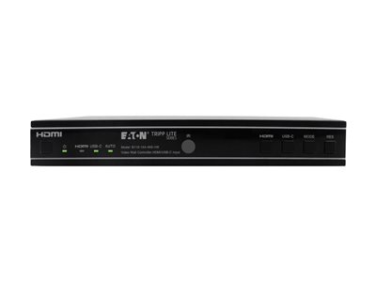

Eaton Tripp Lite series - video/audio switch - 1 x 4 - 4 ports

  • NG # 03448-HW-Eaton-002

  • MF # B119-1X4-4K6-VW

Manufactured By :
Eaton

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

Extends 4K Video from a Single Source to Create 8 Different Video Wall Configurations


This Video Wall Controller is designed to capture, convert, route and distribute all video signal formats to a video wall. It features HDMI and USB-C input with resolution up to 4K at 60 Hz and four HDMI outputs to create eight video wall splicing modes to be stretched either horizontally or vertically: 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, 1x4 and 2x2. You can set display modes via front-panel buttons, the included IR remote or RS-232 commands.


Note


: In video wall mode (except 1x1), only the screens that are selected to perform video wall splicing will display images. Their bezel can be adjusted.


Transmits 4K Video with HDR and 4:4:4 Color


The B119-1X4-4K6-VW supports Ultra HD 4K resolutions at 60 Hz with LPCM, Dolby Digital/Plus/EX and DTS audio. It supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 encryption allows you to stream 4K content with no loss in resolution. This switch also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.


Plug-and-Play Operation for Quick Setup and Immediate Use


The unit works right out of the box with no software required. Mounting hardware is included for installing the units on a wall, under a desk or in a 19-inch rack. Connect a 4K source device to either the HDMI or USB-C input and up to four 4K displays to the HDMI outputs with user-supplied cables. The external power supply comes with four international plug adapters to ensure an AC connection anywhere.


Specification

General
Device Type
Video/audio switch - 1 x 4 - 4 ports
Enclosure Type
Wall-mountable, desktop
Subtype
HDMI
Ports
4 x HDMI
Performance
Bandwidth: 18 Gbps
Max Resolution
3840 x 2160 @ 60 Hz
Features
HDR support, Dolby Digital support, Dolby Digital EX support, Dolby Digital Plus support, DTS support, 12-bit Deep Color support, 3D support, 4:2:0 chroma subsampling support, 4:2:2 chroma subsampling support, 4:4:4 chroma subsampling support, LPCM 2.0 support, LPCM 5.1 support, metal housing, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge), push button
Compliant Standards
HDCP 2.2
Built-in Devices
IR receiver
Status Indicators
Power, HDMI, USB, auto
Expansion / Connectivity
Interfaces
1 x HDMI input ¦ USB-C input ¦ 4 x HDMI output ¦ 1 x SPDIF output ¦ 1 x audio output ¦ 1 x RS232
Power
Power Device
External power adapter
Power Provided
12 V - 1 A
Voltage Required
AC 100-240 V (50/60 Hz)
Electric Current Required
0.3 A
Miscellaneous
Color
Black
Included Accessories
Remote control, international power plugs, 4 screws, 2 mounting brackets
Cables Included
1 x IR receiver cable - 5 ft ¦ 1 x RS-232 adapter ¦ 1 x power adapter - 4 ft
Compliant Standards
EDID compatible, IEC 61000-4-2, CEC, FCC, UL, cUL, RoHS, UKCA, WEEE
Localization
Australia, United Kingdom, North America, Europe
Dimensions & Weight
Width
8.7 in
Depth
3.9 in
Height
1.2 in
Weight
20.81 oz
Dimensions & Weight (Shipping)
Shipping Width
11 in
Shipping Depth
7.1 in
Shipping Height
3.1 in
Shipping Weight
2.43 lbs
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
20 - 90% RH (non-condensing)
Min Storage Temperature
-4 °F
Max Storage Temperature
140 °F
