Eaton 5PX G2 - UPS - 3000 Watt - 3000 VA

  • NG # 03467-HW-Eaton-021

  • MF # 5PX3000RTG2

Manufactured By :
Eaton

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

The Eaton 5PX G2 3000VA 3000W 120V Line-Interactive UPS is designed to ensure power reliability, featuring maintenance-free, sealed, and valve-regulated lead acid batteries. This robust uninterruptible power supply supports up to 3000 watts of power output and provides multiple output connectors, including six NEMA 5-20R and one NEMA L5-30R. With a run time of up to 9 minutes at half load, it maintains performance during power interruptions while operating within a range of 0°C to 40°C. The device includes an LCD display for easy status monitoring and advanced features such as hot-swappable batteries for maintenance.


Furthermore, the Eaton 5PX G2 is rack-mountable and includes all necessary cables, such as power, USB, and RS-232, with a length of 3.05 m. It incorporates a remote management interface via RS-232 and USB, allowing for effective network management. Certified with ENERGY STAR standards, this UPS is suitable for both small and large server environments, providing energy-efficient performance that aids in reducing operational costs.

Specification

General
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Power Device
UPS Technology
Line interactive
Input Voltage
AC 120 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power NEMA L5-30P
Power Output Connectors Details

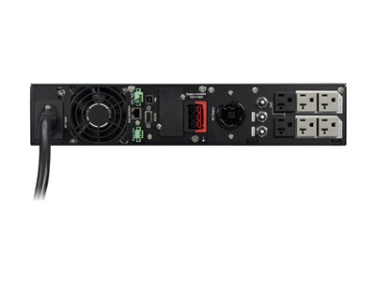

1 x power NEMA L5-30R ¦ 6 x power NEMA 5-20R
Output Voltage
AC 120 V 50/60 Hz
Power Capacity
3000 Watt / 3000 VA
Output Waveform
Sinewave
Battery
Quantity
6
Technology
Lead acid
Capacity
9 Ah
Run Time (Up To)
3 min at full load ¦ 9 min at half load
Features
Sealed, maintenance free, valve-regulated
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x expansion slot
Miscellaneous
Included Accessories
Tower stand
Cables Included
USB cable - external ¦ RS-232 cable - external ¦ Power cable 10 ft
Rack Mounting Kit
Included
Features

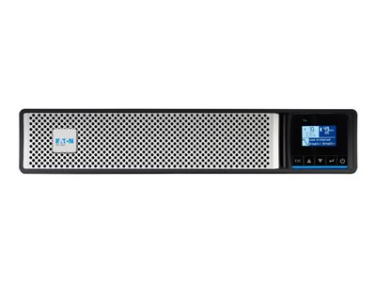

Advance Battery Management (ABM), LCD display, hot-swappable batteries
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
20 - 90% (non-condensing)
Dimensions & Weight
Width
17.4 in
Depth
23.7 in
Height
3.4 in
Compatibility Information
Designed For
P/N: 744-A4803
