Eaton 5P 1500 Tower - UPS - 1100 Watt - 1440 VA

  • NG # 03459-HW-Eaton-013

  • MF # 5P1500

Manufactured By :
Eaton

Stock
10 in stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock
10 in stock

Custom Pricing

Get A Quote

Overview

1.44kVA/1.1kW/120V Battery Backup for Network Closets and Small Data Centers


This 5P line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1500 protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.


Reliable Battery Backup Keeps You Operational Through Power Outages

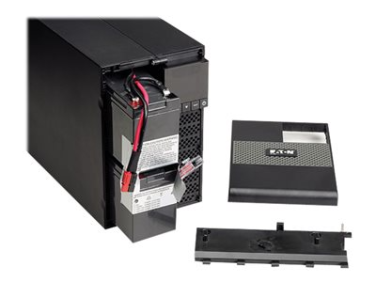

Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.


Optional Gigabit Network Interface Offers 24/7 Remote Access


The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.


NEMA 5-15R Outlets Protect Your Connected Components


Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.


LCD Interface Keeps You Informed at a Glance


The five-button graphical LCD provides useful information about the UPS itself, load status,events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.


Advanced Communications Ports Allow for Automatic Saves and Shutdowns


RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment.

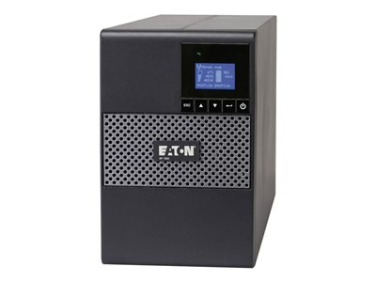

Space-Saving Tower Design


The 5P1500's compact tower design conserves valuable space in a crowded network closet. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.

Specification

General
Device Type
UPS - external
Battery Enclosure Type
Internal
Color
Black, silver
Power Device
UPS Technology
Line interactive
Input Voltage
AC 120 V
Input Voltage Range
AC 89 - 151 V
Input Voltage Range (Adjustable)
AC 70 - 153 V
Frequency Provided
50/60 Hz
Frequency Required
47 - 70 Hz
Input Connectors
Power NEMA 5-15P
Power Output Connectors Details
8 x power NEMA 5-15
Output Voltage
AC 120 V + 6% / - 10% - 50/60 Hz
Power Capacity
1100 Watt / 1440 VA
Efficiency
97%
Battery
Technology
Lead acid
Features
Maintenance free, sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x EPO (emergency power off) - terminal block ¦ 1 x USB ¦ 1 x RS-232
Expansion Slots
1 (total) / 1 (free) x Communication slot
Miscellaneous
Cables Included
USB cable - external - 6 ft ¦ Serial cable - external - 6 ft ¦ Power cable - external - 6 ft
Features
Advance Battery Management (ABM), LCD display, automatic self-test, Remote Emergency Power Off (REPO), hot-swappable batteries
Compliant Standards
CISPR 22 Class B, UL 1778, UL 497A, EN55024, FCC Part 15 B, IEC 62040-2, RoHS
Software / System Requirements
Software Included
Intelligent Power Software Suite
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 3 years
Environmental Parameters
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
0 - 90% (non-condensing)
Sound Emission
45 dBA
Dimensions & Weight
Width
5.9 in
Depth
17.5 in
Height
9.1 in
Weight
0.57 oz
Compatibility Information
Designed For
P/N: 744-A2223
