NG # 03648-HW-AAE-025

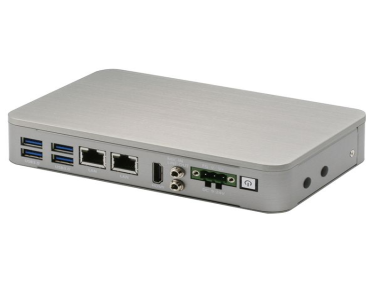

The BOXER-6405 is a rugged, ultra-compact edge AI computing solution for smart factory applications. Only 37mm thick, it can be deployed almost anywhere, and its -20°C ~ 60°C operating temperature range means it can handle harsh, factory environments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe BOXER-6405 is a versatile computer that can be installed with an Intel Movidius deep learning solution to create an AIOT platform, and it can control peripherals and be connected to industrial cameras to establish a powerful machine vision system. It can also serve as an effective IoT gateway device, as WiFi and 4G modules can be installed via the machine’s two mini card slots.
| SYSTEM | |
| CPU | Intel® Celeron N3350 processor |
| CHIPSET | Intel® System on Chip |
| SYSTEM MEMORY | (Default: No) DDR3L 1866, Single Channel SODIMM x 1, Non-ECC (Max.8GB, up to 1600MHz) |
| DISPLAY INTERFACE | HDMI (max. 1920 x 1080) |
| STORAGE DEVICE | mSATA |
| ETHERNET | Intel i211-AT x 2 |
| I/O | Power Button x 1 USB Type A x 4 for USB3.2 Gen 1 HDMI type A x 1 for HDMI v1.4b RJ-45 x 2 for GbE LAN with LED indicator ( i211-AT x 2) Power input x 1 3-pin terminal block in default (+, - , GND) Co-layout 3-pin terminal block & lockable DC-in jack) Co-layout internal DC Mic-in x 1, Line-out x 1 RS-232/422/485 x 3 with automatic flow control (switch by BIOS) VGA x 1 Remote On/Off Antenna opening x 2 DC-in 3-pin terminal block (9-24V) x 1 |
| EXPANSION | Full-size Mini PCIe slot x 1 (PCIe/USB/SIM slot), one screw Half-size Minicard slot x 1 (mSATA only) |
| INDICATOR | Power LED x1, HDD active LED x1 |
| OS SUPPORT | Windows® 10, Windows® 10 IoT, Linux |
| POWER SUPPLY | |
| POWER REQUIREMENT | 9~24V with 3-pin terminal block |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 6.54" x 4.2" x 1.45" (166mm x 106.6mm x 37mm) |
| GROSS WEIGHT | 3.6 lb (1.6kg) |
| NET WEIGHT | 1.76 lb (0.8 kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) with W.T. mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices) |
| STORAGE TEMPERATURE | -22°F ~ 140°F (-30°C ~ 60°C) |
| STORAGE HUMIDITY | 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | 3 Grms/ 5 ~ 500Hz/ operation – mSATA 1 Grms /5 ~ 500Hz/ operation - HDD |
| CERTIFICATION | CE/FCC class A |
