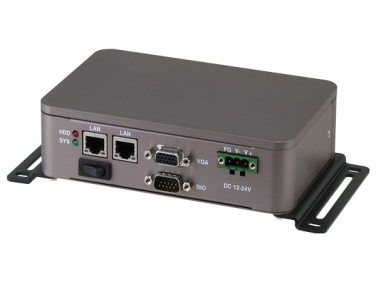

AAEON BOXER-6404U Ultra-Slim Embedded Box PC

  • NG # 03649-HW-AAE-026

BOXER-6404U Ultra-Slim Embedded Box PC with Intel® Celeron® Processor SoC

Manufactured By :
AAEON
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

Dual GbE LAN Port for Industrial Network Appliance 2.5" HDD/SDD Bay x 1 USB 3.2 Gen 1 Port Connectivity, 8-bit Programmable Digital Input/Output 12 ~ 24V DC-in Support

Specification

SYSTEM
CPUIntel® Celeron™ J1900, 2.0 GHz
Intel® Celeron™ N2807, 1.58 GHz
ChipsetIntel® System on Chip
System MemoryDDR3L 1333 SODIMM slot x 1, up to 8 GB (J1900) or 4 GB (N2807)
Display InterfaceVGA
Storage DevicemSATA, HDD/SSD
EthernetIntel® I211-AT x 2
I/ORS-232 x 1
USB 2.0 x 1
USB 3.2 Gen 1 x 1
VGA x 1
LAN x 2
Digital I/O x 8 bit
Antenna holes x 3
Power switch
Power input
ExpansionFull-size Mini-Card x 1
Half Mini-Card x 1 (for mSATA)
SIM card slot x 1
IndicatorPower LED
HDD active LED
OS supportWindows® 10, Windows® 8.1, Windows® 7, Windows® Embedded 8, Windows® Embedded 7, Linux Fedora
POWER SUPPLY
Power Requirement12 - 24V with 3-pin terminal block
MECHANICAL
MountingWallmount
VESA (Mounting kit is optional)
DIN rail (Mounting kit is optional)
Dimensions (W x H x D)6.53" x 4.20" x 1.63" (166 mm x 106.6 mm x 41.5 mm)
Gross Weight3.6 lb (1.6 kg)
Net Weight1.76 lb (0.8 kg)
ENVIRONMENTAL
Operating Temperature-13°F ~ 140°F (-25°C ~ 60°C) with wide temperature HDD/mSATA (according to IEC68-2-14 with 0.5 m/s AirFlow; with industrial devices)
Storage Temperature-22°F ~ 176°F (-30°C ~ 80°C)
Storage Humidity95% @ 40°C, non-condensing
Anti-Vibration5 Grms/ 5 ~ 500Hz/ operation –mSATA
Anti-Shock
CertificationCE/FCC class A
