NG # 03636-HW-AAE-013

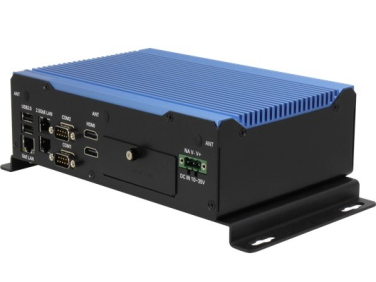

AAEON’s BOXER-6647-MTH brings together a unique, easy access design and the new Intel® Core™ Ultra processor platform all in a compact, rugged fanless PC.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe BOXER-6647-MTH is the first from AAEON’s BOXER-6000 range to harness the new Intel® Core™ Ultra processor platform. The disaggregated die architecture of this platform allows the BOXER-6647-MTH to offload hardware-optimized instructions for tensor operations and matrix multiplication to its NPU, enhancing the bandwidth available to its CPU and GPU for other compute tasks. As a result, applications such as AGV and AMR can run more efficiently, accurately, and with lower latency.
| SYSTEM | |
| CPU | Intel® Core™ Ultra 5 processor 125H Intel® Core™ Ultra 7 processor 155H |
| Chipset | Intel® SoC |
| System Memory | DDR5 5600 MT/s SO-DIMM x2, up to 64GB *Note: One DIMM slot can be user-populated via rear chassis access. Second DIMM slot is not user-accessible, but module preinstallation is available upon request. |
| Display Interface | HDMI x 2 (Support 4K @60Hz) |
| Storage Device | M.2 2280 M-Key x 1 (NVMe PCIe SSD, quick access tray design) 2.5" SATA HDD/SSD x 1 (quick access tray design) |
| Ethernet | RJ-45 x 2 for 2.5GbE LAN (Intel® Ethernet Controller I226) RJ-45 x 1 for GbE LAN (Intel® Ethernet Connection I219) |
| I/O | HDMI x 2 USB 3.2 Gen 2 (Type-A) x 4 USB 2.0 (Type-A) x 2 DB-9 Male x 2 for RS-232/422/485 Line out x 1 D-Sub Male Connector x 1 for 8-bit DIO DC 9V ~ 36V 3-pin Terminal Block Connector Remote Power x 1 Power Button with LED x 1 |
| Expansion | M.2 2280 M-Key x 1 (PCIe [x4] for NVMe Storage) M.2 2230 E-Key x 1 (for Wi-Fi) M.2 3052 B-Key x 1 (for 5G/LTE) SIM Slot x 1 |
| Indicator | Sys LED Storage active LED |
| OS support | Windows® 11 Pro Windows® 11 IoT Enterprise Linux Ubuntu 22.04 |
| POWER SUPPLY | |
| Power Requirement | DC-in 9-36V x1 for 3-pin Terminal Block |
| MECHANICAL | |
| Mounting | Wallmount |
| Dimensions (W x H x D) | 8.66” x 6.06” x 2.42” (220mm x 154mm x 62.1mm) w/o bracket 10.7” x 6.1” x 3.0” (272mm x 154mm x 76.1mm) with bracket |
| Gross Weight | 6.6 lbs. (3.2 kg) |
| Net Weight | 4.9 lbs. (2.4 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~140°F (-20°C ~ 60°C), IEC60068-2 with 0.7 m/s AirFlow, with wide temperature Memory/Storage |
| Storage Temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | 3 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Anti-Shock | 50G, IEC 68-2-27, half sine, 11 ms duration (with SSD) |
| Certification | CE/FCC class A |
