AAEON BOXER-6451-ADP Fanless Compact Embedded Computer

  • NG # 03647-HW-AAE-024

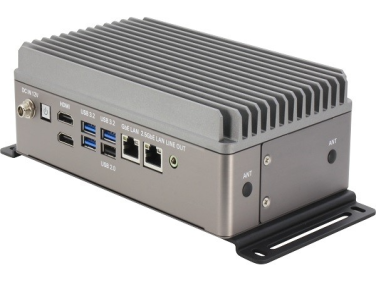

BOXER-6451-ADP Fanless Compact Embedded Computer with 12th Generation (Alder Lake-P U15) Intel® Core™ Processor

Manufactured By :
AAEON
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The BOXER-6451-ADP is an exceptionally small, yet powerful fanless embedded PC powered by 12th Generation Intel® Core™/Celeron® processors (formerly Alder Lake-P U15). Channeling its high-level CPU capabilities through a fast, vast array of connectors for unmatched peripheral device function, the BOXER-6451-ADP is expertly designed for AMR, kiosk, and smart manufacturing applications. Designed with a new, innovative cooling structure, the BOXER-6451-ADP effortlessly accelerates heat transfer to facilitate heavier workloads. Additionally, the BOXER-6451-ADP gives users 5G, Wi-Fi, and NVMe functionality through the system’s unprecedented expandability, making it the perfect compact solution for bringing high performance to any project.

Specification

SYSTEM
CPUIntel® Core™ i7-1265UE
CHIPSETIntel® SoC
SYSTEM MEMORYDDR4 SODIMM x1 (Maximum support: up to 32GB)
DISPLAY INTERFACEHDMI 1.4b x 2 (Type-A)
STORAGE DEVICE2.5” SATA-III Drive Bay x1
M.2 2280 M Key x1 (PCIEx4)
ETHERNETRJ-45 x 1 for 2.5GbE (Intel® I226-LM)
RJ-45 x 1 for GbE (Intel® I219-LM)
I/OUSB 3.2 Gen 2 x 3 (Type-A)
USB 2.0 x 1 (Type-A)
DB-9 x 4 for RS-232/422/485
HDMI 1.4b x 2 (Type-A)
Power Button x 1
DC Jack 12V Input
Antenna Opening x 6
EXPANSIONM.2 2230 E-Key x 1 (Wi-Fi/BT)
M.2 3052 B-Key w/ SIM x 1 (LTE/5G)
M.2 2280 M-Key x 1 (NVMe)
INDICATORPower Button with LED
OS SUPPORTWindows® 10 IoT Ent LTSC
Windows® 11 PRO
Ubuntu 22.04
POWER SUPPLY
POWER REQUIREMENTDC-in 12V x 1 for Lockable DC Jack
MECHANICAL
MOUNTINGWallmount
DIMENSIONS (W X H X D)7.68" x 4.37" x 2.5" (195mm x 111mm x 63.5mm) w/o bracket
GROSS WEIGHT4.4 lb (2Kg)
NET WEIGHT3.3 lb (1.5Kg)
ENVIRONMENTAL
OPERATING TEMPERATURE-4°F ~140°F (-20°C ~ 60°C), IEC68-2 with 0.5 m/s AirFlow with wide temperature Memory/Storage
STORAGE TEMPERATURE-40˚F ~ 176˚F (-40˚C ~ 80˚C)
STORAGE HUMIDITY5 ~ 95% @ 40˚C, non-condensing
ANTI-VIBRATIONSSD: Random, 3Grms, 5~500Hz
ANTI-SHOCKSSD: 50G @ wallmount, Half-sine, 11ms
CERTIFICATIONCE/FCC class A
