NG # 03671-HW-AAE-048

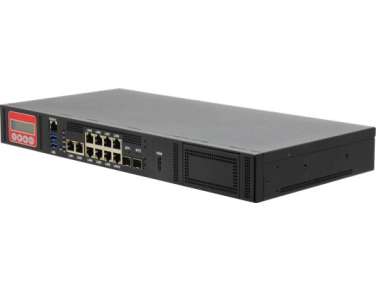

The new FWS-7851 is a rackmount network appliance that gives you the flexibility and versatility to deploy and power solutions to meet specific project objectives across industries.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteBuilt with a groundbreaking modular yet interconnected power supply design, the FWS-7851 boosts both reliability and power efficiency, all while maintaining exceptional networking capabilities and expansion options.
| PLATFORM | |
| Form Factor | 1U Rackmount Network Appliance |
| processor | 12th/13th Generation Intel® Core™ Processors |
| Chipset | Intel® W680 Chipset (Project Base: Intel® Q670, H610) |
| System Memory | DDR5 SODIMM slots x 2 |
| NETWORK | |
| Ethernet | Intel® I226-V 2.5GbE RJ-45 x 10 (Including 2 pairs Bypass) + Intel® I210-IS GbE SFP x 2, optional: 10GbE SFP+ x 2 (PCIe[x4] via PER-T639 Note: Intel® H610 Chipset SKU limited to 2.5GbE RJ-45 x 8 |
| Bypass | 2 Pairs LAN Bypass 3.1 ( LAN 3-4, LAN 5-6) |
| NIM Slot | 1 |
| DISPLAY | |
| Connector | HDMI port x 1 |
| STORAGE | |
| HDD | 2.5" HDD x 2 (default) or 3.5" HDD x 1(If no NIM module present) |
| EXPANSION/INTERNAL INTERFACE | |
| Mini-Card | M.2 2242 M-Key (PCIe [x4]) x 1 |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 |
| Software Button | 1 |
| TPM | TPM2.0 SPI |
| GPIO | Reserved internal pin header 8-bit Digital I/O interface (4-in /4-out) |
| Fan | System Fan x 2 |
| MTBF (hours) | TBD |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 220W Power |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 0%~80% @40°C; non-condensing |
| Vibration | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| Dimension (W x D x H) | 16.93” x 7.87” x 1.73” (430mm x 200mm x 44mm) |
| I/O INTERFACE | |
| Front Panel | Intel® I226-V 2.5GbE RJ-45 x 10 (Including 2 pairs Bypass) + Intel® I210-IS GbE SFP x 2, optional: 10GbE SFP+ x 2 (PCIe[x4] via PER-T639 Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 x 2 HDMI x 1 RJ-45 Console x 1 LCM display with keypad x 1 Software Programmable Button x 1 NIM Slot x 1 |
| Rear Panel | AC Power Input x 1 Power Switch x1 |
