NG # 03665-HW-AAE-042

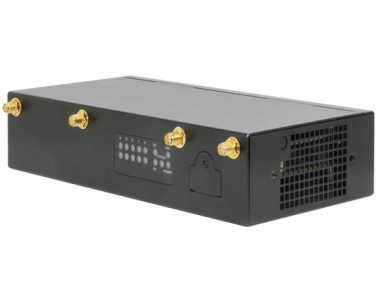

The FWS-2280 is powered by the latest Intel® Celeron® Processor J Series/Intel® Pentium® Processor N Series/Intel Atom® Processor X Series, designed to bring the performance needed to power network applications from UTM and firewall to VPN and SD-WAN, and now FlexiWAN certified. Supporting up to 32 GB of RAM, the system is capable of handling intensive networking processes, as well as ensure more accurate and secure connections thanks to technologies like Intel® AES-NI.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteDesigned for faster, more flexible connections, the FWS-2280 comes standard with four copper Gigabit RJ-45 LAN ports and one fiber SFP port, allowing fast, direct connections. The FWS-2280 provides wireless flexibility with six antenna ports and three Mini PCIe slots (co-lay with M.2), allowing up to three wireless modules to be installed at the same time; including multiple Wi-Fi and Bluetooth networks, as well as 4G and 5G cellular modules.
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel® Elkhart Lake J6412 |
| CHIPSET | SoC |
| SYSTEM MEMORY | 260-pin DDR4 SO-DIMM x 1, 3200MT/s (8GB for this package) |
| NETWORK | |
| ETHERNET | Intel® i211 , Gigabit Ethernet x 4Intel® i210, SFP X1 |
| BYPASS | — |
| DISPLAY | |
| GRAPHICS CONTROLLER | Intel® UHD Graphics |
| CONNECTOR | HDMI x1 |
| STORAGE | |
| CF/CFAST/MSATA | mSATA slot x 1 SATA III port x 1 (64GB SSD for this package) |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | Mini Card Socket (PCIe + USB 2.0, full size) with SIM x1Mini Card Socket (PCIe, half size) x1 |
| KB MOUSE | — |
| USB | USB 2.0 Type A x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO programmable push button x 1 |
| TPM | — |
| FAN | Smart fan x 1 |
| MTBF (HOURS) | TBD |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER REQUIREMENT | 2 x 12V DC Power Input Connector Lockable, 40W power adapter |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (mSATA)1.5 Grms/ 5 ~ 500Hz / non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation20 G peak acceleration (11 m sec. duration), non operation |
| DIMENSION (W X D X H) | 8.27” x 4.09” x 1.73” (210mm x 105mm x 44mm) |
| I/O | |
| FRONT PANEL | 3 x LEDs (Power, Status, Storage)1 x Micro-SIM2 x Antenna Hole |
| REAR PANEL | 2 x DC Power Input Connector Lockable1 x Power Button2 x USB2.0 Ports4 x 1GbE RJ45 Ports,1 SFP1 x RJ-45 console1 x Reset Button3 x Antenna Hole |
