NG # 03659-HW-AAE-036

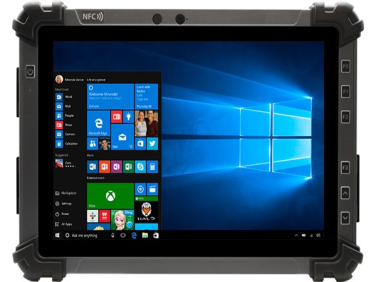

RTC-1010 10.1” Waterproof Ruggedized Tablet Features with Intel® N3350/N4200 Processor with Windows
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe robust RTC-1010 rugged tablet features an LCD bonded with a scratch-resistant projected capacitive multi-touch screen. The ruggedized tablet is designed to operate in a range of tough conditions, with an operating temperature range of -20°C to 50°C and meets MIL-STD-810G specifications for vibration resistance and drop testing from 122cm. The RTC-1010 boasts waterproof tablet design with its IP65 compliant construction which also keeps out dust and other contaminants.
| System Architecture | |
| Processor | Intel® Pentium® N4200 1.1GHz Quad core up to 2.5GHz |
| Operating System | Windows® 10 IOT Enterprise SAC |
| Memory | Onboard DDR3L 4GB |
| Storage | eMMC 64GB |
| Display | 10.1" WXGA (1280x800) 300-nit TFT LCD With Projected Capacitive Multi-Touch Screen |
| I/O Port | Micro-HDMI port x 1 SIM card slot x 1 Micro-SD card slot x 1 Audio jack x 1 (3.5mm) USB 3.2 Gen 1 x 2 (USB Type-C x 1), USB 2.0 x 2 DC-in jack x 1 RS-232/422/485 COM Port x 1 10/100/1000 Base-T RJ45 x 1 Smart card reader x 1 (Optional, Without IP protection) |
| Sensors | G-sensor, E-compass, Gyro-sensor, Light-sensor |
| Navigation | Up to 3 GNSS, GPS + Galileo(Default), GLONASS, BeiDou (Optional) |
| Camera | 2MP front camera, 8MP rear camera with flash |
| Communication | Wi-Fi 802.11 b/g/n, Bluetooth v5.1(EDR+BLE), Intel AC9260 |
| Expansion Slot | Inside M.2 slot x 1 (For WiFi module) Mini-card slot x 1 (For LTE module) Docking connector: USB 2.0 x 1 |
| Barcode Scanner | 2D Barcode scanner, OPTICON MDI-4100-USB |
| HF RFID | ISO 15693 (R/W) ISO 18092 (R/W) ISO 14443-A (R/W) ISO 14443-B (Only Read UID) Depend on card type |
| AUDIO | Speaker x 1 |
| PHYSICAL KEY | F0 or Windows (Windows Start Key), F1(BCR Trigger Button (When BCR is enabled), F2(Screenprint), F3(Ctrl+Alt+Del as Soft Reboot), Volume Up, Volume Down |
| Mechanical | |
| Color | Black & Dark Gray |
| Dimension (W x H x D) | 272.0 x 190.0 x 20.4 mm (10.71" x 7.48" x 0.80") |
| Gross Weight | 2.2 lb (1.0 Kg) based on configurations |
| Environmental | |
| Operating Temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
| Storage Temperature | -67°F ~ 158°F (-55°C ~ 70°C) |
| Humidity | 0% ~ 90% relative humidity, non-condensing |
| Environmental Sealing | IP65 |
| Vibration | MIL-STD-810G-514.6 Procedure I Cat.24, Fig 514.6E-1 & 514.6E-2 (Unit is non-operating) ASTM 4169-99 Truck Assurance Level II, Schedule E (Unit is non-operating) |
| Drop | MIL-STD-810G-516.6, Procedure IV Drop height: 122 cm Number of Drop: 26 times, for all surfaces, edges and corners Condition: Based on 2” plywood over concrete |
| ESD | Air charge: +/- 8KV, Contact charge: +/- 4KV |
| Certifications and Standards | CE EMC, CE RED WiFi 2.4G+5G / LTE, LVD, FCC EMC, FCC RF WiFi 2.4G+5G, IC / UKCA / UL, TELEC WiFi |
| Power Supply | |
| AC / DC Adapter | AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3A/ 36W |
| Battery Life | Li-ion Battery 8-hour battery life based on test configurations |
| Master Battery | Hot-swappable battery: 14.4V, 2270mAh, 32.7W |
| Slave Battery | 7.4V, 1530mAh, 11.3W |
| Display | |
| LCD | 10.1" TFT-LCD Display |
| Resolution | 1280 x 800 |
| MAX. COLORS | 16.7M |
| Dot Size | 0.1692 (H) x 0.1692 (V) mm |
| Brightness | 300 nit |
| Viewing Angle | Horizontal: 170°, Vertical: 170° (Typical) |
| Touch Screen | |
| Touch Type | Projected capacitive multi-touch screen (PCT) |
| Light Transmission | Min 85% |
