NG # 03668-HW-AAE-045

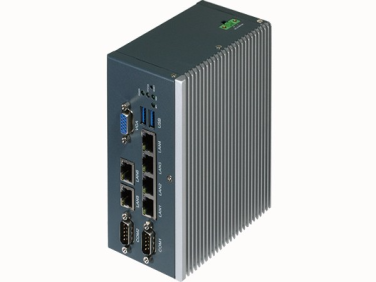

The ICS-6270 is a highly scalable and rugged hardware solution for critical infrastructure in harsh industrial-based environments, and as such has been designed to industrial-grade requirements, operating at an impressive wide-temperature range of -40°C ~ 75°C.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteIt is enclosed within a corrosion-proof steel casing for resistance against outer stimuli, and features an aluminum heatsink, enhancing the cooling function and maximizing air circulation.
| SYSTEM | |
| FORM FACTOR | DIN Rail/ Desktop |
| PROCESSOR | Intel® Celeron® Processor N3350 SoC |
| SYSTEM MEMORY | DDR3L 1866, Single Channel SODIMM x 1 (Max.8GB, up to 1600MHz) |
| ETHERNET | Intel® Ethernet Controller I210-AT GbE x 6 |
| BYPASS | Supports up to 2 pairs |
| BIOS | AMI SPI Flash BIOS |
| SERIAL ATA | SATA 6.0 Gb/s port x 1, for 2.5” HDD/SSD |
| CF/CFAST/MSATA | CFast™ socket x 1 |
| EXPANSION INTERFACE | Supports Mini-Card slot x 1 with SIM socket |
| USB | USB 3.2 Gen 1 x 2 |
| SERIAL PORT | Supports up to RS-232/422/485 COM Port x 2 |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| RTC | Internal RTC |
| SYSTEM FAN | Fanless |
| COLOR | Dark Grey |
| POWER SUPPLY | 2 Pin Terminal Block |
| DIMENSION | 4.96" x 2.93" x 5.74" (126 x 74.5 x 146mm) |
| POWER REQUIREMENT | +9 ~ 36V, 2-pin terminal block |
| MTBF (HOURS) | 101292 |
| DISPLAY | |
| CHIPSET | Intel® HD Graphics 500 |
| INTERFACE | VGA port x 1 |
| I/O | |
| FRONT I/O PANEL | RJ-45 GbE x 6 RS-232/422/485 COM Port x 2 VGA port x 1 USB 3.2 Gen 1 x 2 Software programmable button x 1 Power LED x 1 HDD LED x 1 Status LED x 1 Bypass LED x 2 |
| REAR I/O PANEL | DIN Rail/ Wallmount Lock |
| TOP PANEL | 2-Pin Terminal Block +9~36VDC x 1 |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -40°F ~ 156°F (-40°C ~ 75°C) |
| STORAGE TEMPERATURE | -40°F ~ 185°F (-40°C ~ 85°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (SSD) 1.5 Grms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
