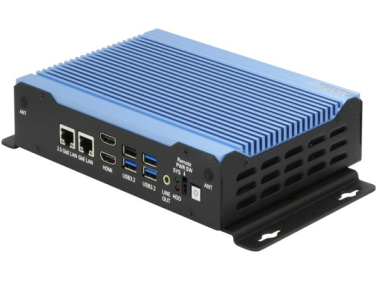

AAEON BOXER-6643-TGU Fanless Embedded Box PC

  • NG # 03640-HW-AAE-017

BOXER-6643-TGU Fanless Embedded Box PC with 11th Generation Intel® Core™ SoC Processor | Tiger Lake | BOXER-6643-TGU

Manufactured By :
AAEON
Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The BOXER-6643-TGU brings the power of 11th Generation Intel® Core™ U processors to a compact, rugged platform that delivers greater performance and capabilities over previous generations. The system supports up to 64GB of memory to unlock the full potential of the system’s processing capabilities. Along with the Intel® Iris® Xe embedded graphics, users can leverage the GPU to power AI and Edge Computing industrial applications, or high definition graphics in digital signage and kiosk applications.

Specification

SYSTEM
CPUIntel® Core™ i7-1185G7E
Intel® Core™ i5-1145G7E
Intel® Core™ i3-1115G4E
ChipsetIntel® SoC
System MemoryDDR4 3200MHz SO-DIMM x 2, max 64GB
Display InterfaceHDMI 2.0 x 2
Storage DeviceM.2 2280 M Key NVMe Slot x1 (PCIex4)
2.5" SATA Drive Bay x1
EthernetRJ-45 x 2 for 1G/2.5GbE LAN (i219x1, i225x1)
I/OHDMI 2.0 x 2
RJ-45 x 2 for 1G/2.5GbE LAN (i219 x 1, i225 x 1)
USB Type-A x3 for USB3.2 Gen2
USB Type-A x1 for USB 2.0
DB-9 x 2 for RS-232/422/485
DB15 x1 Male for Digital I/O 8-channel
Line out x 1
3 pin 9~36V Power Input x 1
Power Button with LED x 1
ExpansionM.2 3052 B Key x 1 (for 5G module)
Full-Size Minicard x1 (PCIe + USB / SATA, Default PCIe + USB)
SIM Slot x 1
IndicatorPower / System LED
OS supportWindows® 10 IoT 64-bit
Window 10 Pro
Linux Ubuntu 20.04.2
POWER SUPPLY
Power RequirementDC-in 9-36V x1 for 3-pin Terminal Block
MECHANICAL
MountingWall Mount
Dimensions (W x H x D)9.84” x 5.62” x 2.03” (250 x 143 x 51.5) with bracket
7.87” x 5.62” x 1.75” (200 x 143 x 44.5) w/o bracket
Gross Weight4.4 lb (2.0 kg)
Net Weight3.3 lb (1.5 kg)
ENVIRONMENTAL
Operating Temperature-4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.5 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM)
Storage Temperature-40°F ~ 176°F (-40°C ~ 80°C)
Storage Humidity5 ~ 95% @ 40°C, non-condensing
Anti-Vibration3 Grms/ 5 ~ 500Hz/ operation (with SSD)
Anti-Shock50G, IEC 68-2-27, half sine, 11 ms duration (with SSD)
CertificationCE/FCC Class A
