NG # 03642-HW-AAE-019

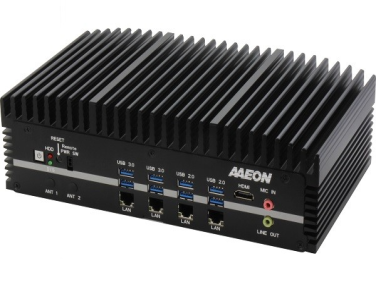

BOXER-6641-PRO Fanless Embedded Box PC with Socket Type 8th/9th Generation Intel® Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteBOXER-6641-Pro, a recent addition to our Rugged Embedded BOX PC series, is powered by 9th/8th Generation Intel® Core™ processors (formerly Coffee Lake/Coffee Lake Refresh) to deliver the optimal performance for critical industrial applications. To meet the endurance required by deployments in harsh environments, BOX-6641-Pro supports extended operating temperature from -40°F ~ 158°F (-40°C ~ 70°C). In addition, with graphene adopted in thermal design, the fanless BOX-6641-Pro features far enhanced thermal efficiency to further improve computing performance in real-world applications.
| SYSTEM | |
| CPU | Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T |
| Chipset | Intel® C246/H310 |
| System Memory | DDR4-2666 SO-DIMM slot x 2, Up to 64GB, ECC or Non-ECC Support |
| Display Interface | HDMI x 2 |
| Storage Device | 2.5” SATA HDD/SSD Bay x 2 |
| Ethernet | Intel® i211 x 3, i219 x 1 |
| I/O | HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 4, USB2.0 x 4 (A1 model) USB 3.2 Gen 1 x 8 (A2 model) DB-9 x 6 for RS-232/422/485 10 pin Terminal Block for 8-bit DIO Audio x 1 (MIC-in, Line-out) 3 pin 10~35V Power Input x 1 Power Button x 1 Remote Power switch x 1 Reset Button x 1 |
| Expansion | Full-size Mini PCIe x 1 Full-size Mini Card x 1 (PCIe/mSATA switch by BIOS, Default: mSATA) SIM slot x 1 |
| Indicator | HDD LED x 1 SYS LED x 1 |
| OS support | Windows® 10 64-bit Linux Ubuntu 20.04.2 |
| POWER SUPPLY | |
| Power Requirement | 3-pin DC Input 10~35V |
| MECHANICAL | |
| Mounting | Wall mount kit |
| Dimensions (W x H x D) | 10.4” x 3.19” x 6.15” (264.2mm x 80.92mm x 156.2mm) |
| Gross Weight | 10.4 lb (4.7 kg) |
| Net Weight | 8.2 lb (3.7 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -40°F ~ 158°F (-40°C ~ 70°C), according to IEC68-2-14 with 0.5 m/s AirFlow (w/Industrial wide Temp. SSD/RAM) |
| Storage Temperature | -40°C ~ 80°C |
| Storage Humidity | 5 ~ 95% @ 40C, non-condensing |
| Anti-Vibration | 2 Grms/ 5 ~ 500Hz/ operation (with SSD) |
| Certification | CE/FCC class A |
