AAEON RTC-710RK

  • NG # 02536-HW-AAE-005

Manufactured By :
AAEON
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

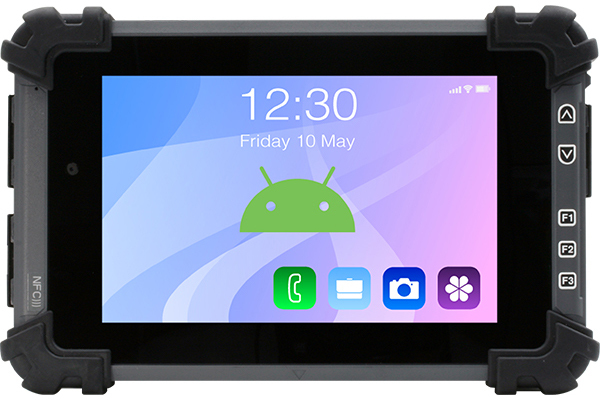

The RTC-710RK is designed to bring better performance, powered by the 6-core Rockchip RK3399 ARM processor, offering stable and efficient operation thanks to its RISC based construction. The RTC-710RK pairs this innovative processor with up to 4 GB of memory and up to 128 GB of storage to power a range of applications. The RTC-710RK utilizes the Android 8.1 (Oreo) operating system, which can be easily customized for a user’s specific needs.

The RTC-710RK is built to work where you need it, for as long as you need it. The RTC-710RK is built to the standard as all of AAEON’s rugged tablets, with MIL-STD-810G and IP65 certifications for vibration testing, drop testing, water and dust proofing. The RTC-710RK also boasts longer battery life thanks to a larger internal battery and hot-swappable battery pack that allows the rugged tablet to keep working without having to stop for a recharge. The RTC-710RK also features a high brightness screen (approx. 700 nits), as well as physical function keys which can be programmed by users.

Flexibility is a feature with the RTC-710RK, with a great standard I/O layout, which can be easily customized for the user’s applications. Users can also opt for add-on modules including a RJ45 and UART port module, or 2D barcode scanner. AAEON also offers a selection of ergonomic accessories to make all day use easier, including a hand strap, carry bag, and shoulder belt.

Specification

  • 7" WXGA (1280 x 800) 700-nit / 300-nit TFT LCD
  • Rockchip RK3399K Processor
  • Onboard LPDDR4 Memory, 2GB (Default) / 4GB
  • eMMC 16GB (Default) / 32GB / 64GB
  • Projected Capacitive Multi-Touch Screen
  • WiFi 802.11b/g/n, Bluetooth 4.2, LTE (Optional)
  • 8MP Front and 8MP Rear Camera
  • UART Port + 10/100/1000 Base-T RJ45 via I/O Module (Optional)
  • USB 3.2 Gen 1 Type-C x 1, USB 2.0 Type-A x 1
  • 2D Barcode Scanner via I/O Module (Optional)
  • NFC (HF RFID) Reader (Optional)
  • GPS + GLONASS (Default), BeiDou (Optional)
  • One Hot-swappable Battery + Internal Battery, Up to 44W Battery Capacity
  • MIL-STD-810G, IP65 Compliant, Drop 122cm
  • Programmable Function Key: F1, F2, F3, Volume Up/Down, With LED Illumination
  • Android 8.1/ Android 11 (Optional)
