NG # 03662-HW-AAE-039

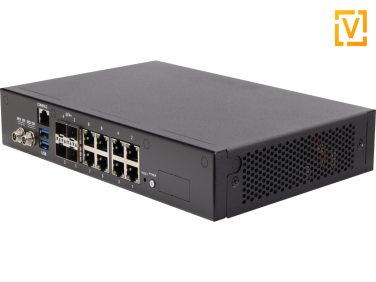

FWS-2370 Network Appliance with Intel Atom® Processor C Series/Intel Atom® Processor P Series
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe FWS-2370 is the most expansive, versatile network platform AAEON has ever developed, offering unparalleled wired and wireless networking options. Powered by Intel Atom® C5000 processors and boasting up to 14 LAN ports ranging from 1GbE to 10GbE speeds, the FWS-2370 is precisely designed to elevate what SD-WAN and uCPE applications can achieve. Robust connectivity and high-powered processing are joined by a range of integrated security features, keeping your business safe in today’s ever-evolving landscape.
| SYSTEM | |
| FORM FACTOR | Desktop Network Appliance |
| PROCESSOR | Intel Atom® Processor C Series/Intel Atom® Processor P Series Default: Intel Atom® Processor C5315 |
| CHIPSET | SoC |
| SYSTEM MEMORY | DDR4 SODIMM socket x 2, up to ECC/Non-ECC 64GB (Default: n/a) |
| NETWORK | |
| ETHERNET | Intel® Ethernet Controller I226-V 2.5GbE x 4 Marvell® Alaska® 88E1543 GbE x 4 10G SFP+ x 4 |
| BYPASS | 2 Pair |
| STORAGE | |
| HDD | SATA 6Gb/s x 2 (co-lay M.2 2242 M-Key x 1) |
| CF/CFAST/MSATA | Support up to 128GB (Default eMMC 32GB) |
| INTERNAL/ EXPANSION INTERFACE | |
| PCIE SLOT | — |
| MINI-PCIE SLOT | M.2 2230 E-Key x 1 (PCIe) for Wi-Fi co-lay half-size Mini Card Slot x 1 (PCIe) M.2 3052 B-Key x 1 (USB 2.0) for 5G/LTE co-lay full-size Mini Card Slot with push-pin SIM Slot x 1 (PCIe + USB 2.0) M.2 3052 B-Key x 1 (USB 3.0 + USB 2.0) for 5G/LTE co-lay full-size Mini Card Slot with push-pin SIM Slot x 1 (USB 3.0 + USB 2.0) |
| KB MOUSE | — |
| USB | USB 3.0 x 2 (shared with PCIe Slot for PoE, default USB 2.0 x 2) |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| WATCHDOG TIMER | 1~255 steps by software programmable |
| SOFTWARE BUTTON | GPIO Programmable push button x 1 |
| TPM | (Optional) |
| GPIO | Reserve Internal Pin Header 8-bit Digital I/O Interface (4-in/4-out) |
| FAN | Smart Fan x 1 (Default) Internal Smart Fan Pin Header x 1 (Reserve) |
| MTBF (HOURS) | TBD |
| COLOR | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| POWER Consumption | Dual in 12V 60W Adapter (w/o POE) Dual in 12V 90W Adapter (w/ POE) |
| OPERATING TEMPERATURE | 32°F ~ 104°F (0°C ~ 40°C ) |
| STORAGE TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C) |
| OPERATING HUMIDITY | 10%~80% relative humidity, non-condensing |
| STORAGE HUMIDITY | 10%~80% @40°C; non-condensing |
| VIBRATION | 0.5 Grms/ 5 ~ 500Hz / operation (mSATA) 1.5 Grms/ 5 ~ 500Hz / non-operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non-operation |
| DIMENSION (W X D X H) | 10.2" x 7" x 1.7" (260mm x 178mm x 44mm) |
| I/O | |
| FRONT PANEL | Optional type c console x 1 Micro SIM socket x 2 Main board LAN LED x 24 Optional module LAN LED via cable x 4 Bypass LED x 2 Storage LED x 1 Status LED x 1 Power LED x 2 Antenna hole x 3 |
| REAR PANEL | DC Power Input Connector Lockable x 2 RJ45 console x 1 USB 3.0 Port x 2 Power LED x 2 10G SFP+ x 4 1G Marvell RJ45 Port x 4 2.5G RJ45 Port x 4 SW reset button x 1 Power button x 1 Antenna hole x 4 Optional 2.5G LAN module x 2 (optional with POE af/at) |
