NG # 03646-HW-AAE-023

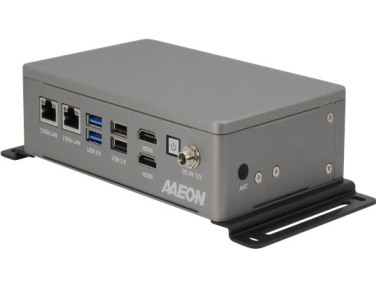

BOXER-6406U-ADN Fanless Compact Embedded Computer with Intel Atom® Processor X-series/N-series
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteLow power, compact, and robust, the BOXER-6406U-ADN represents the very best in efficient industrial computing. Easy expansion is joined by a plethora of communication interfaces, granting users a platform that performs in tough environments.
| SYSTEM | |
| CPU | Intel® Processor N200 |
| CHIPSET | Intel® SoC |
| SYSTEM MEMORY | (Default: No) DDR5 4800Mhz SODIMM x 1, up to 32GB |
| DISPLAY INTERFACE | HDMI x 2 |
| STORAGE DEVICE | M.2 2280 M-Key x 1 (PCIe Gen 3 [x2]) 2.5" SATA HDD/SSD x 1 |
| ETHERNET | RJ-45 x 2 for 2.5GbE LAN (Intel® I226-LM) |
| I/O | HDMI x 2 RJ-45 x 2 for 2.5GbE LAN (Intel® Ethernet Controller I226-LM) USB 3.2 Gen 2 (Type-A) x 2 USB 2.0 (Type-A) x 2 DB-9 x 2 for RS-232/422/485 DB-15 x 1 Male for 8-Channel Digital I/O 12V DC Jack Input Power Button with LED x 1 Antenna Opening |
| EXPANSION | M.2 2280 M-Key x 1 (PCIe [x2]) M.2 2230 E-Key x 1 Full-Size Mini Card x 1 (PCIe + USB) SIM Slot x 1 |
| INDICATOR | Power Button with LED |
| OS SUPPORT | Windows® 10 IoT Enterprise Windows® 11 Pro Ubuntu 22.04 |
| POWER SUPPLY | |
| POWER REQUIREMENT | Lockable DC Jack x 1 for 12V DC-in |
| MECHANICAL | |
| MOUNTING | Wallmount |
| DIMENSIONS (W X H X D) | 6.46" x 4.11" x 1.85" (164mm x 104.5mm x 47mm) without bracket 8.74" x 4.11" x 2.13" (222mm x 104.5mm x 54mm) with bracket |
| GROSS WEIGHT | 3.8 lb. (1.73Kg) |
| NET WEIGHT | 2 lb. (0.93Kg) |
| ENVIRONMENTAL | |
| OPERATING TEMPERATURE | -4°F ~ 140°F (-20°C ~ 60°C), according to IEC68-2 with 0.7 m/s AirFlow (w/ Industrial wide Temp. SSD/RAM) |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| STORAGE HUMIDITY | 5 ~ 95% @ 40°C, non-condensing |
| ANTI-VIBRATION | With SSD: Random, 3 Grms, 5~500Hz |
| ANTI-SHOCK | With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration |
| CERTIFICATION | CE/FCC Class A |
