NG # 03653-HW-AAE-030

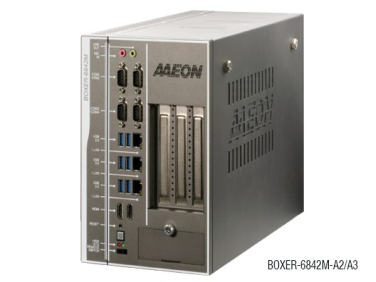

BOXER-6842M Fanless Embedded Controller with 8th/9th Generation Intel® Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe BOXER-6842M features the 8th and 9th Generation Intel® Core™ i9/i7/i5/i3 and Xeon® E processors (formerly Coffee Lake/Coffee Lake Refresh), offering top end computing performance. Paired with up to 128 GB of SODIMM memory, the system is designed to deliver the best performance possible to handle processing intensive machine vision and AI Edge server applications.
| System | |
| CPU | -- |
| CPU Support | Intel® Xeon® E-2124G; Intel® Core™ i9-9900T; Intel® Core™ i7-8700T; Intel® Core™ i5-9500TE Intel® Core™ i5-8500T; Intel® Core™ i3-8100T; Intel® Pentium® G5400T; Intel® Celeron® G4900T Note: Support max. TPD 71W Processor |
| Chipset | C246, No H310 downward support |
| System Memory | DDR4 SO-DIMM socket x4 (double deck) Support max. 2666MHz up to 128GB Support un-buffered and ECC / non-ECC type SODIMM |
| Display Interface | HDMI x 2 Support Dual Independent Display, 4K Ultra HD displays |
| Storage Device | 2.5" SATA Drive Bay x2 (4 SATA Port w/ RAID Function) mSATA x 1 (optional) M.2 2280 NVMe SSD slot x 1 |
| Ethernet | RJ-45 x 3 for GbE (Intel i211AT x 2, i219LM x 1) |
| I/O | HDMI x 2 Audio (Mic-in, Line-out) USB 3.2 Gen1 x 6 DB-9 x4 for RS-232/422/485 with automatic flow control 3 pin DC Power input x 1 (+, - , GND) Power ON/OFF switch x 1 2 pin Remote power on/off connector Reset switch |
| Expansion | A2/A3/A4/A5 Full-size Minicard x 1 (PCIE + USB with 1 SIM Slot) Half-size Minicard x 1 (PCIE + USB, optional for mSATA) M.2 M key (2280) x 1 (PCIEx4) - Max. Power Consumption of GPU card 250W - Max. Size of GPU card 280mm x150mm x 40mm A2 PCIE [x4] x 1 + PCIE [x16] x 1 A3 PCIE [x4] x1 + PCIE [x8] (in x16 slot) x 2 A4 PCIE [x4] x1 + PCIE [x8] (in x16 slot) x2 Support dual Graphics Cards with two power inputs A5 Built in Nvidia A2 x1 PCIE [x4] x 1 + PCIE [x8] x 1 (in x16 slot) Note: A3 is fanless system. A2 & A4 & A5 is fan system with PWM function |
| Indicator | System Power LED x 1 (Green) Storage Active LED x 1 (Red) |
| OS Support | Windows® 10 Enterprise 64 bit Ubuntu 18.04.4 |
| Power Supply | |
| Power Requirement | A2/A3/A4 DC In 12~24V with 3-pin terminal block No Graphics Card: CPU 35W->120W Adapter x 1, CPU 71W->240W Adapter x 1 With 250W Graphics Card x1: 480W Adapter x 1 A4 DC In 12~24V with 3-pin terminal block With 250W Graphics Card x2: 330W Adapter x 1 + 480W Adapter x 1 A5 DC In 12~24V with 3-pin terminal block With A2 x 1: 240W Power Adapter x 1 With A2 x 2: 330W Power Adapter x 1 |
| Mechanical | |
| Mounting | Wallmount |
| Dimensions | A2/A3: 6.17” x 8.92” x 12.8” (156.7mm x 226.5mm x 325mm) A4: 7.77” x 8.92” x 12.8” (197.3mm x 226.5mm x 325mm) |
| Gross Weight | A2/A3: 18.52 Ib (8.4 Kg); A4: 20.72 Ib (9.4 Kg); A5: 20.5 lb (9.3 Kg) |
| Net Weight | A2/A3: 15.65 Ib (7.1 Kg); A4: 17.86 Ib (8.1 Kg); A5: 17.64 (8 Kg) |
| Environmental | |
| Operating Temperature | Without Graphics Cards: -4°F ~ 149°F (-20°C ~ 65°C) with 0.5m/s airflow With 250W Graphics Card: 32°F ~ 113°F (0°C ~ 45°C) with 0.5m/s airflow A5: 32°F ~ 113°F (0°C ~ 40°C) with 0.5m/s airflow |
| Storage Temperature | -49°F ~ 176°F (-45°C ~ 80°C) |
| Storage Humidity | 5 ~ 95% @ 40°C, non-condensing |
| Anti-Vibration | HDD: Random, 1Grm, 5~500Hz |
| Anti-Shock | - |
| Certification | CE / FCC class A |
