NG # 03658-HW-AAE-035

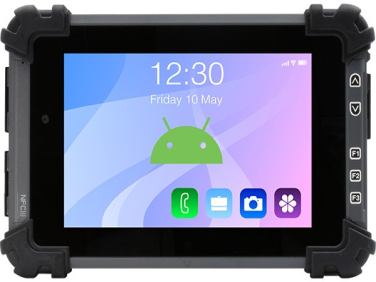

RTC-710RK 7” Rugged Tablet ARM-based Android™ with 1.6 GHz Quad Core Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe RTC-710RK is designed to bring better performance, powered by the 6-core Rockchip RK3399 ARM processor, offering stable and efficient operation thanks to its RISC based construction. The RTC-710RK pairs this innovative processor with up to 4 GB of memory and up to 128 GB of storage to power a range of applications. The RTC-710RK utilizes the Android 8.1 (Oreo) operating system, which can be easily customized for a user’s specific needs.
| System Architecture | |
| Processor | Rockchip RK3399K Processor (Quad-Core A53 1.6GHz & Dual-Core A72 2.0GHz) |
| Operating System | Android™ 11 (No NFC function) |
| Memory | Onboard LPDDR4 2GB |
| Storage | eMMC 16GB |
| Display | 7" WXGA (1280x800) 700-nit TFT LCD With Projected Capacitive Multi-Touch Screen |
| I/O Ports | SIM card slot x 1, USB 3.2 Gen 1 Type-C x 1, Audio jack x 1 (3.5mm), DC-in jack x 1, Micro-SD card slot x 1, USB 2.0 Type-A x 1 |
| Communication | Wi-Fi 802.11 b/g/n, Bluetooth v4.2 (EDR + BLE) |
| Navigation | GPS + GLONASS (Default) |
| CAMERA | 8MP front camera, 8MP rear camera with flash |
| Sensors | G-sensor, E-compass, Gyro-sensor, Light-sensor |
| Expansion Slot | M.2 slot x 1, Docking connector: USB 3.2 Gen 1 x 1 |
| HF RFID | — |
| Audio | Speaker x 1 |
| PHYSICAL KEY | F1(Audio on/off), F2 (Screenprint), F3 (Barcode Scanner Trigger), Volume Up, Volume Down |
| Mechanical | |
| Color | Dark Grey |
| Dimension (W x H x D) | 8.65" x 5.46" x 0.94" (219.8 x 138.8 x 23.9mm) |
| Gross Weight | 1.54 lb (0.7 Kg) based on configurations |
| Environmental | |
| Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) for high-brightness version |
| Storage Temperature | -30°C ~ 70°C (-22°F ~ 158°F) |
| Humidity | MIL-STD-810G Method 507.5 |
| Environmental Sealing | IP65 |
| Vibration | MIL-STD-810G Method 514.6 |
| Drop | MIL-STD-810G Method 516.6 Procedure IV Height of Drop: 150 cm 5 ft |
| SHOCK | MIL-STD-810G |
| ESD | Air charge: +/- 8KV, Contact charge: +/- 4KV |
| Certifications and Standards | UL62368-1, CE EMC, CE RED WiFi 2.4G+5G; CB; FCC EMC, FCC RF WiFi 2.4G;UKCA / UL; TELEC WiFi / LTE |
| Power Supply | |
| AC / DC Adapter | AC 100 ~ 240 V, 50 ~ 60 Hz, Output: 12V/ 3.34A/ 40W |
| Battery Life | Li-ion Battery 8-hour battery life based on test configurations |
| Master Battery | 7.4V, 4420mAh, 32.7W |
| Slave Battery | Hot-swappable battery: 7.4V, 1530mAh, 11.3W |
| Display | |
| LCD | 7” TFT-LCD / 16:10, with LED backlight |
| Resolution | 1280 x 800 |
| Maximum Color | N/A |
| Dot Size | 0.03925(H) X 0.11775(V) mm |
| Brightness | 700 nits |
| Viewing Angle | Horizontal: 178°, Vertical: 178° (Typical) |
| Touch Screen | |
| TOUCHSCREEN TYPE | 7" Projected Capacitive Multi-Touch Screen (700 nits with 10 points) |
| Light Transmission | Min. 85% |
