NG # 03655-HW-AAE-032

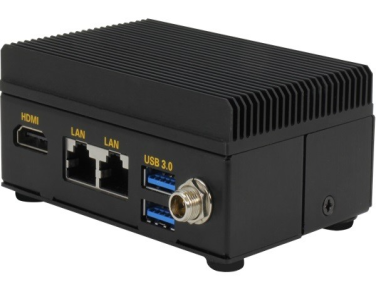

de next-TGU8-EZBOX de next system with onboard 11th Gen. Intel® Core™ Series Processor
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe de next-TUG8 broke board-space limitations, now the de next-TUG8-EZBOX is smashing system limits. The de next line’s inaugural system-level offering, the de next-TUG8-EZBOX, is the world’s smallest edge system with an embedded Intel® Core™ processor. Designed as a fanless, out of the box solution, the de next-TUG8-EZBOX pairs 11th Gen Intel® Core™ processing performance with a broad spectrum I/O in a compact Mini PC, making it ideal for embedded applications ranging from industrial IoT Gateway to smart kiosk deployments.
| SYSTEM | |
| FORM FACTOR | de next System |
| CPU | Onboard 11th Gen Intel® Core™ Processors Intel® Core™ i3-1115G4E (2C/4T, 2.20 GHz, 15W) |
| CHIPSET | Integrated with Intel® SoC |
| MEMORY TYPE | Onboard LPDDR4x 3733, 16GB |
| BIOS | UEFI |
| WAKE ON LAN | Yes |
| WATCHDOG TIMER | 255 Levels |
| SECURITY | fTPM |
| RTC Battery | Lithium Battery 3V/240mAh |
| DIMENSION | 3.75" x 2.73" x 1.78" (95.5mm x 69.5mm x 45.4mm) with cooler |
| OS SUPPORT | Windows 10 (64bit) Ubuntu 20.04.4 (Kernel 5.13) |
| POWER | |
| POWER REQUIREMENT | +12V |
| POWER SUPPLY TYPE | AT/ATX |
| CONNECTOR | DC Jack Connector |
| POWER CONSUMPTION | Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 4.58A@12V, 55W (Typical) Intel® Core™ i7-1185G7E, LPDDR4x 16GB, 7A@12V, 84W (Max) |
| DISPLAY | |
| CONTROLLER | Intel® UHD Graphics for 11th Gen Intel® Processors |
| DISPLAY INTERFACE | HDMI 1.4b x 1, up to 3840 x 2160 @30Hz |
| Multiple Display | Single Display |
| EXTERNAL I/O | |
| ETHERNET | Intel® Ethernet Controller I225/I226, 2.5GbE RJ-45 x 1 Intel® Ethernet Connection I219, 1GbE RJ-45 x 1 |
| USB | USB 3.2 Gen 2 x 2 |
| SERIAL PORT | — |
| VIDEO | HDMI 1.4b x 1, up to 3840 x 2160 @30Hz |
| INTERNAL I/O | |
| FAN | 4 Pin Smart Fan |
| EXPANSION | |
| M.2 | M.2 2280 M-Key x 1 (PCIe 4.0 [x2] x 1) |
| ENVIRONMENT & CERTIFICATION | |
| OPERATING TEMPERATURE | 14°F ~122°F (-10°C~50°C) with 0.7m/sec air flow |
| STORAGE TEMPERATURE | -40°F ~ 176°F (-40°C ~ 80°C) |
| OPERATING HUMIDITY | 0% ~ 90% relative humidity, non-condensing |
| MTBF (HOURS) | 609,263 |
| CERTIFICATION | CE/FCC Class A |
