NG # 03652-HW-AAE-029

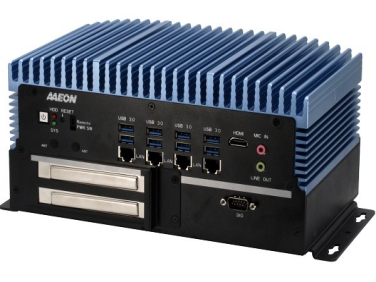

The BOXER-6839-CFL combines the power of 8th/9th Generation Intel® Core™ and Xeon® processors (formerly Coffee Lake) with expandability and a broad I/O layout, allowing it to power industrial applications and easily integrate with existing deployments.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteThe BOXER-6839-CFL supports 8th/9th Generation Intel® Core™ i3/i5/i7/i9 and Xeon® E processors (up to 71W TDP), delivering server grade performance. Combined with up to 64GB of memory, the BOXER-6839-CFL brings the processing power and speed needed to power a range of industrial and AI applications.
| SYSTEM | |
| CPU | Intel® Xeon® E-2124G Intel® i9-9900T Intel® i7-9700TE Intel® i7-8700T Intel® i5-8500T Intel® i3-8100T Pentium® G5400T Celeron® G4900T |
| Chipset | C246 |
| System Memory | DDR4-2666 SO-DIMM slot x 2 Up to 64GB, ECC or Non-ECC Support |
| Display Interface | HDMI x 2 |
| Storage Device | 2.5” SATA HDD/SSD Bay x 2 |
| Ethernet | RJ-45 x 4 for GbE LAN (i211-AT x 3, i219-LM x 1) |
| I/O | HDMI x 2 RJ-45 x 4 for GbE LAN (i211 x 3, i219 x 1) USB 3.2 Gen 1 x 8 DB-9 x 6 for RS-232/422/485 Audio x 1 (MIC-in, Line-out) DB-15 for DIO 8 bit x 1 3 pin 10~35V Power Input x 1 Power Button x 1 Remote Power switch x 1 Reset Button x 1 |
| Expansion | Full-size Mini card x 1 (PCIe) Full-size Mini card x 1 ((PCIe/mSATA switch by BIOS, Default: mSATA) SIM slot x 1 PCIE slot : Riser card type 1: PCIe[x4] slot x 1 & PCIe[x1] x 1 (A1) Riser card type 2: PCIe[x4] slot x 1 & PCI x 1 (A2) Riser card type 3: PCI x 2 (A3) Max. size of expansion card 150 x 105 x 40 mm |
| Indicator | HDD LED x 1 System LED x 1 |
| OS support | Windows® 10 64-bit, Linux Ubuntu 20.04 |
| POWER SUPPLY | |
| Power Requirement | 3-pin Phoenix DC Input 10~35V |
| MECHANICAL | |
| Mounting | Wallmount |
| Dimensions (W x H x D) | 264mm x 156mm x 125mm |
| Gross Weight | 13.2 lb (6.0 kg) |
| Net Weight | 9.9 lb (4.5 kg) |
| ENVIRONMENTAL | |
| Operating Temperature | -4°F ~131°F (-20°C ~ 55°C) with 0.5 m/s airflow (with TDP ≦ 35W CPU) -4°F~113°F (-20°C ~45°C) with 0.5 m/s airflow (with TDP > 35W CPU) |
| Storage Temperature | -49°F ~ 176°F (-45°C ~ 80°C) |
| Storage Humidity | 5~95% @ 40°C, non-condensing |
| Anti-Vibration | 5 Grms/ 5 ~ 500Hz/ operation –SSD |
| Anti-Shock | SSD: 50G @ wallmount, Half-sine, 11ms |
| Certification | CE/FCC class A |
