NG # 03672-HW-AAE-049

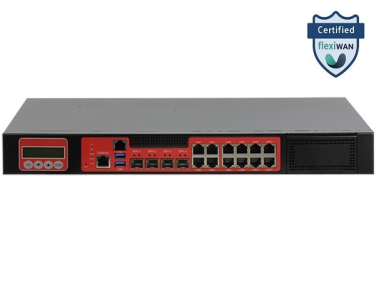

The FWS-7541 is the newest and most sophisticated addition to AAEON’s Rackmount Network Appliance range. Powered by Intel® Xeon® D-1700 Processors (formerly Ice Lake-D), it offers Intel Xeon-level performance in a more power-efficient way.
Stock
Custom Pricing
Get A Quote
Stock
Custom Pricing
Get A QuoteA purpose-built I/O hosts a wealth of features to make the FWS-7541 the optimal low-power, high-performance network management solution. Complementing this is the system’s impressive expandability in such a compact form factor, which offers wireless module support for multiple network connection sources, providing stable, reliable uCPE and SD-WAN solutions. The FWS-7541 has now also obtained the distinction of flexiWAN certification.
| PLATFORM | |
| Form Factor | 1U Rackmount Platform Network Appliance |
| processor | Intel® Xeon® D-1700 Processors |
| Chipset | SoC |
| System Memory | DDR4 SODIMM x 2 (ECC) |
| NETWORK | |
| Ethernet | 1GbE RJ-45 x 12 (Intel® I350-AM4 x 3) + up to 10Gb SFP+ x 4 (see note 1) |
| Bypass | 2 Pairs LAN Bypass 3.1 |
| NIM Slot | NIM Slot x 1 (Optional) |
| DISPLAY | |
| Connector | VGA from IPMI x 1 (Optional by BOM SKU) |
| STORAGE | |
| HDD | 2.5” HDD x 2 (default) or 3.5” HDD x 1 (If no NIM module present) |
| EXPANSION/INTERNAL INTERFACE | |
| Mini-Card | M.2 3052 B-Key x 1 for 4G/5G (USB 3.0 + PCIe) with SIM M.2 2230 E-Key x 1 (PCIe) |
| IPMI | Project base |
| USB | USB 3.2 Gen 1 x 2 |
| MISCELLANEOUS | |
| RTC | Internal RTC |
| Watchdog Timer | 1~255 |
| Software Button | 1 |
| TPM | TPM2.0 SPI |
| GPIO | N/A, DIO pin header x 1 (4-in/4-out), optional by BOM SKU |
| Fan | System Fan x 1 |
| MTBF (hours) | TBD |
| Color | Black |
| PHYSICAL & ENVIRONMENTAL SPEC | |
| Power Requirement | 220W Power |
| Operating Temperature | 32°F ~ 104°F (0°C ~ 40°C ) |
| Storage Temperature | -4°F~ 140°F (-20°C ~ 60°C) |
| Operating Humidity | 10%~80% relative humidity, non-condensing |
| Storage Humidity | 0%~80% @40°C; non-condensing |
| Vibration | 0.5 g rms/ 5 ~ 500Hz / operation (2.5” Hard Disk Drive) 1.5 g rms/ 5 ~ 500Hz / non operation |
| SHOCK | 10 G peak acceleration (11 m sec. duration), operation 20 G peak acceleration (11 m sec. duration), non operation |
| Dimension (W x D x H) | 16.93” x 7.87” x1.73”(430mm x 200mm x 44mm) |
| I/O INTERFACE | |
| Front Panel | 1GbE RJ-45 x 12 (Intel® I350-AM4 x 3) + up to 10GbE SFP+ x 4 (SKU optional) Power LED x 1 Status LED x 1 HDD Active LED x 1 USB 3.2 Gen 1 x 2 RJ-45 Console x 1 LCM display with Keypad x 1 Software Programmable Button x 1 |
| Rear Panel | AC Power Input x 1 Power Switch x 1 |
