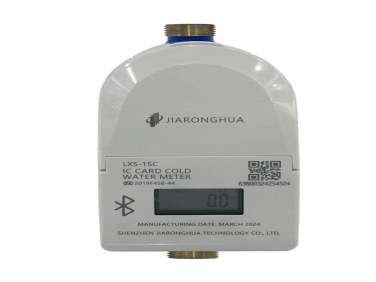

IC Card Prepaid Water Meter

  • NG # 04269-HW-JRH-008

The IC Card Prepaid Water Meter is an advanced smart metering solution designed for efficient water usage management through a prepaid billing system. It allows users to recharge water credit via an IC card, ensuring accurate measurement, controlled consumption, and improved billing transparency.

Manufactured By :
JiaRongHua
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The IC Card Prepaid Water Meter integrates modern microelectronics, intelligent sensing technology, and secure IC card functionality to provide a reliable and automated water management system. Unlike traditional postpaid meters, this system operates on a “pay first, use later” principle, giving both utility providers and users greater control over water consumption and billing.

Users can easily recharge their IC card with a specific amount of water credit and activate the meter by inserting or swiping the card. The system continuously tracks water usage and deducts consumption from the available balance in real time. Once the balance reaches zero, the built-in control valve automatically shuts off the water supply, preventing unpaid usage and eliminating billing disputes.

Designed for residential, commercial, and institutional applications, the meter enhances operational efficiency while reducing manual meter reading and administrative costs. It features secure data handling through encryption, ensuring one card per meter for reliable and tamper-resistant operation. Additionally, the device often includes dual display systems, low power consumption technology, and long battery life, making it suitable for long-term use in diverse environments.

Overall, this smart water meter is an ideal solution for modern water utilities seeking accurate billing, improved resource management, and enhanced user convenience.

Specification

  • Measurement Type: Smart prepaid water metering with IC card control
  • Operating Principle: Prepaid (pay before use) automatic valve control
  • Nominal Diameter: Typically DN15–DN40 (varies by model)
  • Flow Measurement Range: Q1–Q3 standard flow range
  • Accuracy: Up to ±2% in normal operating range
  • Display: LCD digital display with optional mechanical counter backup
  • Power Supply: DC battery (approx. 3.0–3.6V)
  • Battery Life: Up to 6–8 years (low power consumption design)
  • Protection Level: IP68 waterproof and dustproof rating
  • Working Temperature:
    • Ambient: 5°C to 55°C
    • Water Temperature: 0.1°C to 90°C (model dependent)
  • Working Pressure: Up to 1.0–1.6 MPa
  • Material: Brass, copper, or reinforced engineering plastic
  • Valve Type: Motorized control valve with automatic shut-off
  • Communication: IC card data transfer (contact or contactless)
  • Security: Encrypted one-card-one-meter system
  • Functions:
    • Prepaid billing and automatic deduction
    • Low balance alarm and fault alerts
    • Anti-magnetic and tamper protection
    • Data storage and transfer via IC card
    • Automatic valve closure on zero balance
  • Installation: Suitable for residential, apartments, commercial buildings, and utility systems
