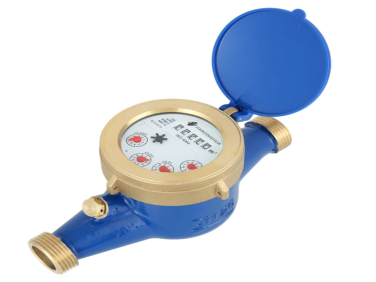

Multi-Jet Dry Type Water Meter

  • NG # 04279-HW-JRH-018

The Multi Jet Dry Type Water Meter is a high-precision mechanical flow measurement device designed for residential and commercial water usage monitoring. It uses multi-jet technology and a dry-dial register system with magnetic transmission to ensure accurate readings, long service life, and resistance to external interference. The meter is suitable for cold and hot water applications and complies with international metering standards.

Manufactured By :
JiaRongHua
Ask For Price

Stock

Need Help Ordering?
Call +88 01714243446

Custom Pricing

Get A Quote
Ask For Price
Need Help Ordering?
Call +88 01714243446

Stock

Custom Pricing

Get A Quote

Overview

The Multi Jet Dry Type Water Meter is engineered to deliver reliable and stable water consumption measurement in domestic and light industrial applications. It operates on the multi-jet principle, where water flows through multiple inlet jets that drive an impeller. The impeller’s rotation is transmitted magnetically to a sealed dry register, ensuring that the counting mechanism remains completely isolated from water.

This dry-type design prevents fogging, corrosion, and wear of internal components, resulting in long-term readability and maintenance-free operation. The meter is designed for high accuracy even at low flow rates and is protected against external magnetic interference, making it tamper-resistant.

It is widely used in residential apartments, irrigation systems, municipal water supply, and commercial water management systems where accurate billing and monitoring are required.

Specification

  • Product Type: Multi Jet Dry Type Water Meter
  • Working Principle: Multi-jet velocity type with magnetic drive
  • Register Type: Dry dial, vacuum-sealed register
  • Size Range: DN15 – DN50 (typical range)
  • Material: Brass / Cast iron / Engineering plastic (body options)
  • Flow Measurement: Multi-jet impeller system
  • Accuracy Class: Class B (ISO 4064 compliant)
  • Water Temperature: Cold water ≤ 40°C (optionally hot water versions available)
  • Maximum Pressure: Up to 1.6 MPa (16 bar)
  • Installation Position: Horizontal
  • Protection: Anti-magnetic interference, tamper-resistant design
  • Display Type: Mechanical register with clear numerical reading
  • Maintenance: Low maintenance, long service life
  • Application: Residential water metering, irrigation, commercial water usage
  • Standard Compliance: ISO 4064
